Specifications

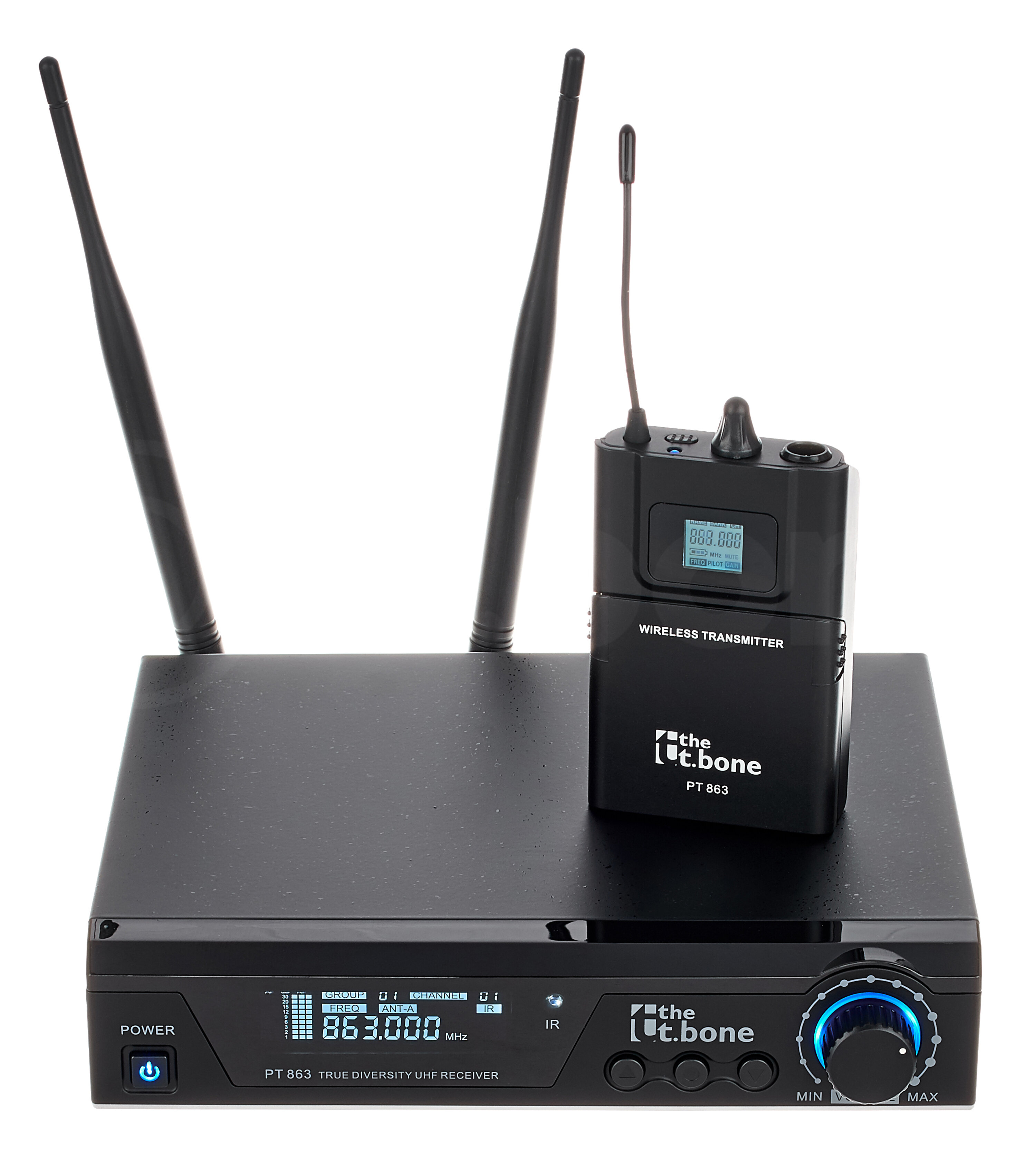

the t.bone free U PT 863
UHF Wireless System

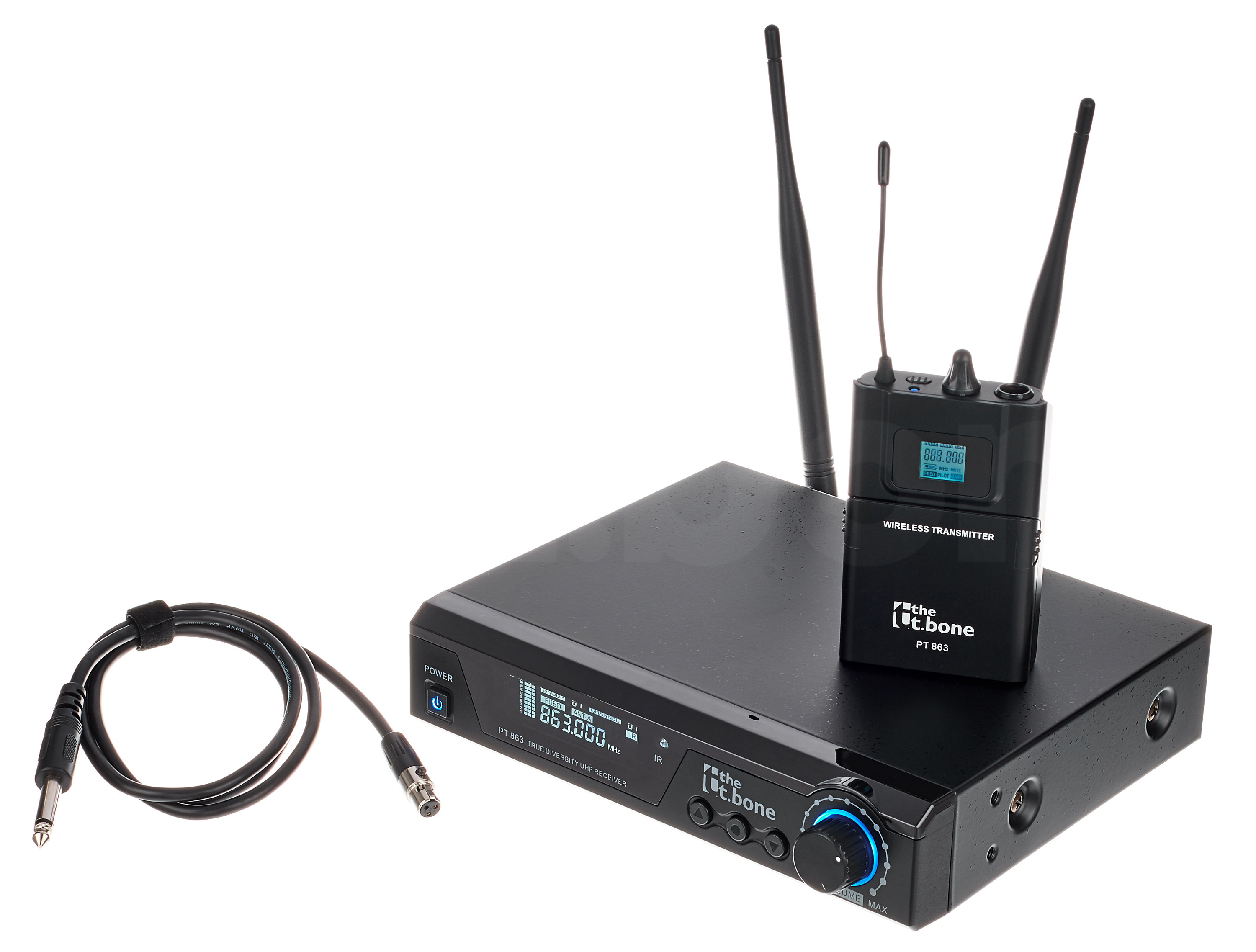

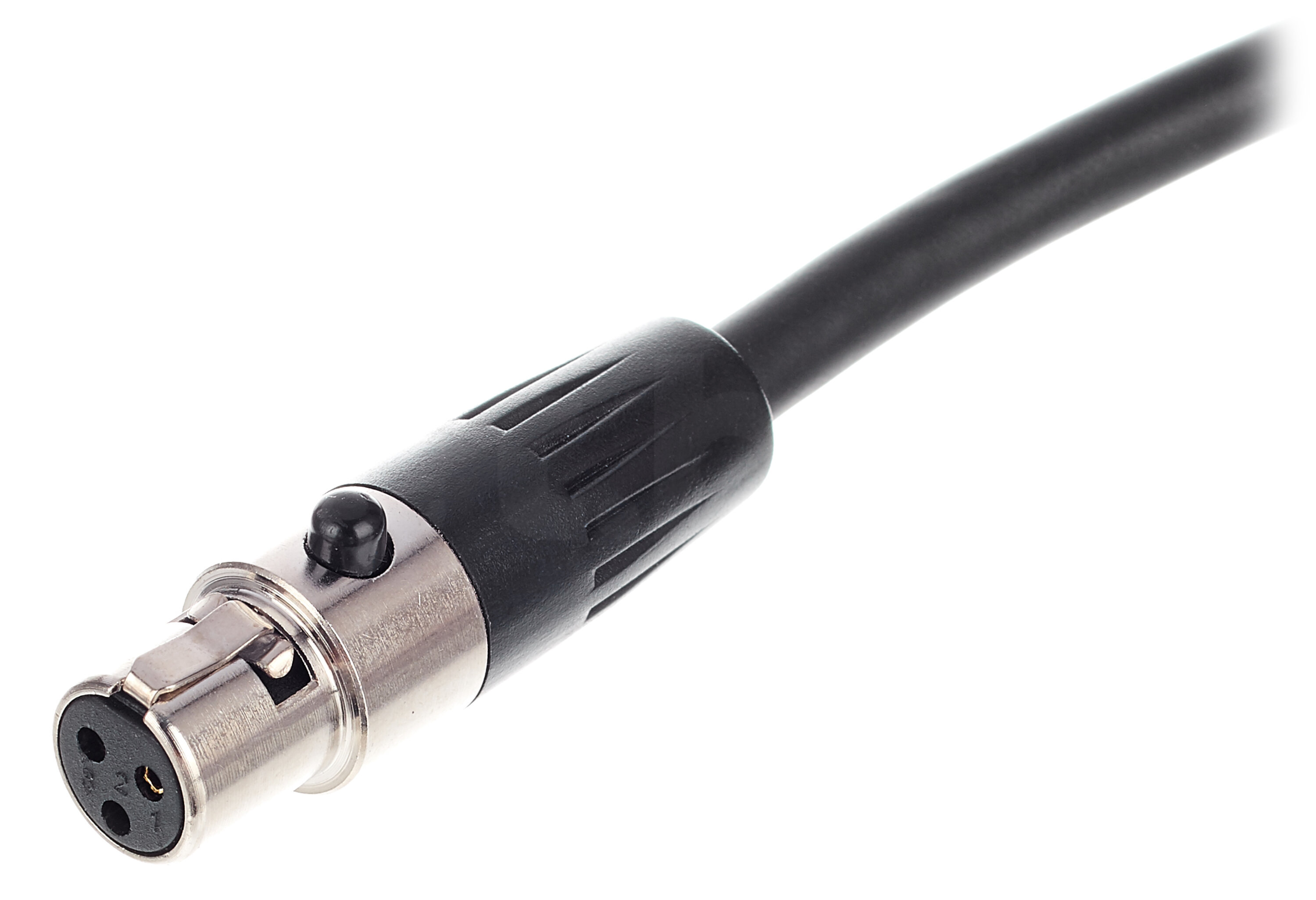

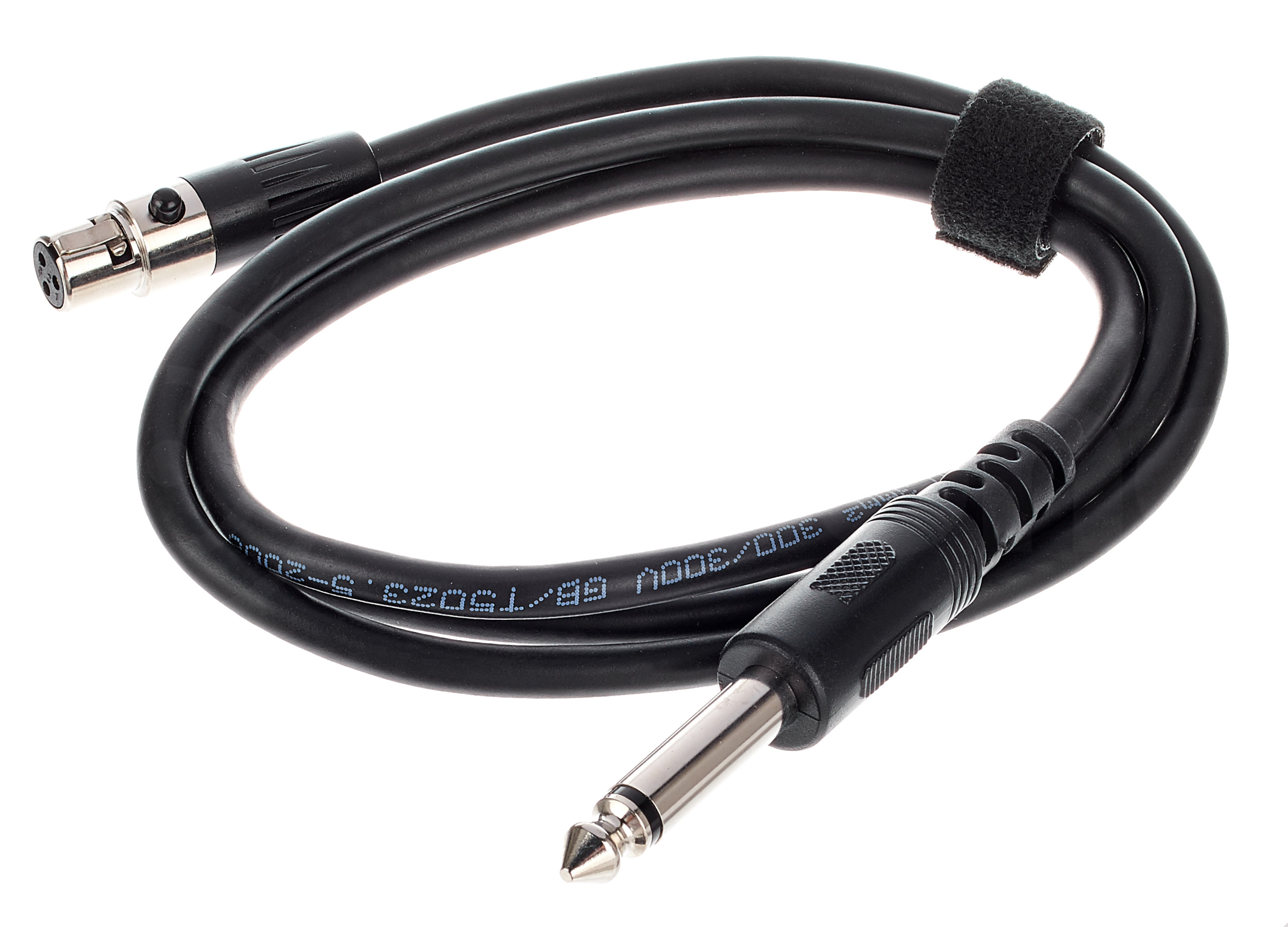

- Includes a pocket transmitter with a guitar cable for applications with instruments
- Frequency band: 863 – 865 MHz
- Frequency range: 60 – 17,000 Hz
- 4 Pre-programmed frequency groups with 4 available channels each
- Auto squelch
- Frequency scan in the receiver
- Adjustable AF output
- Transmission power: 10 mW
- Infrared transfer of the settings from the receiver to the transmitter
- Pilot tone
- Increments of 125 kHz
- Modulation type: F3E
- LCD display

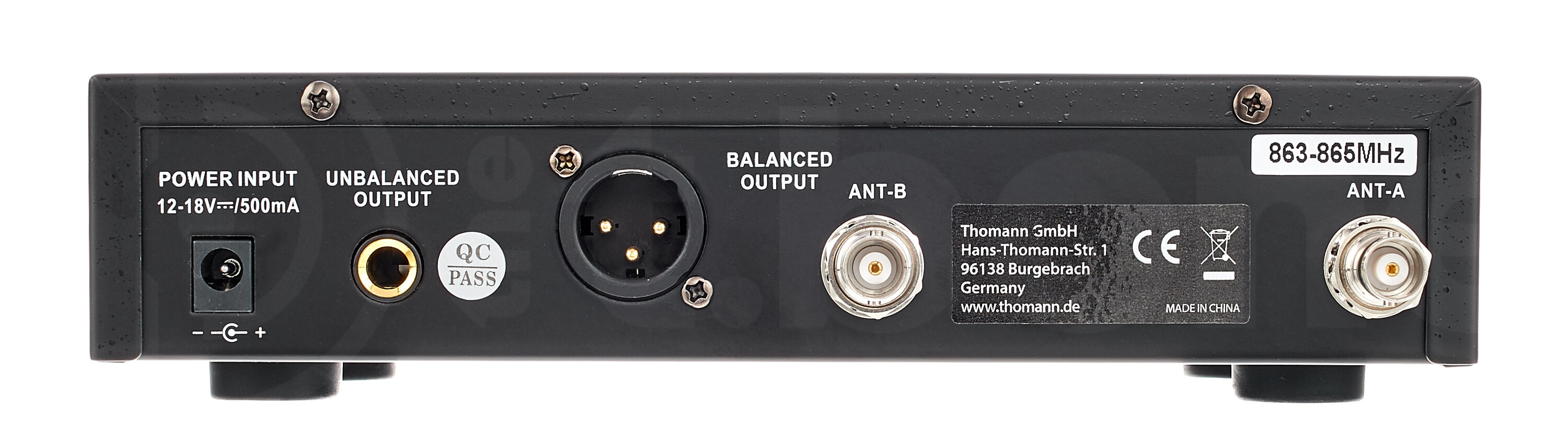

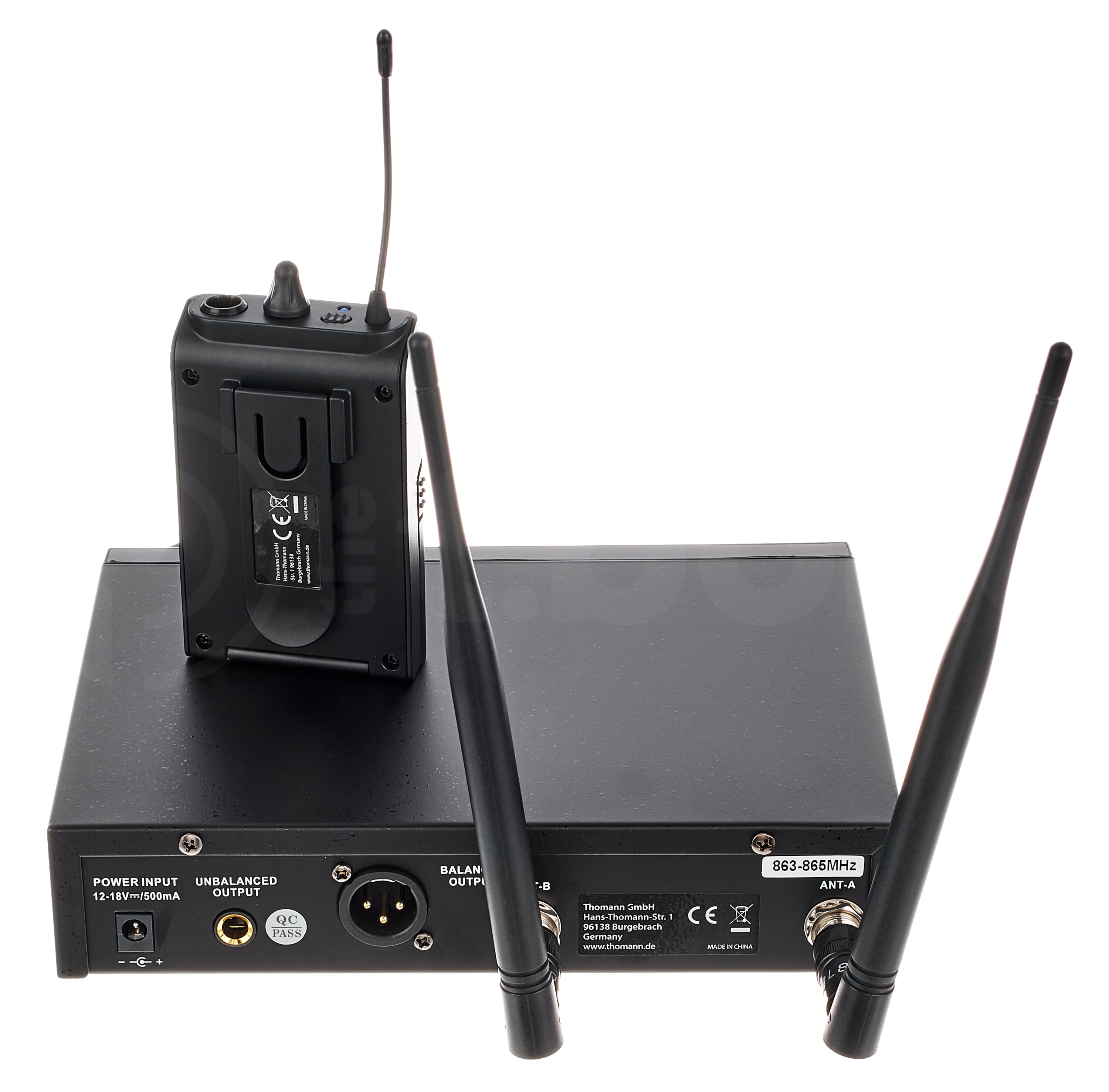

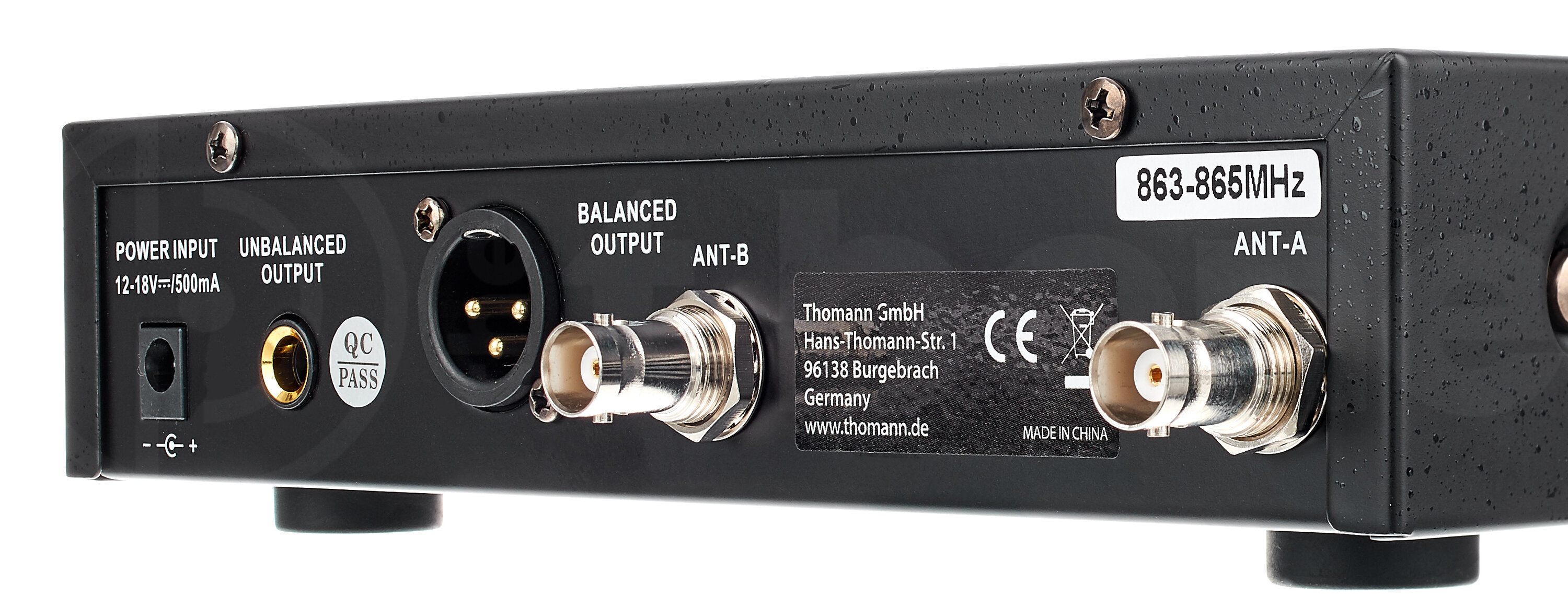

- Housing size: 9.5″, 1 U with 2 BNC antenna connectors
- XLR- and jack output
- Operates with a 12 V, 0.5 A DC power supply (positive polarity (+) inside)

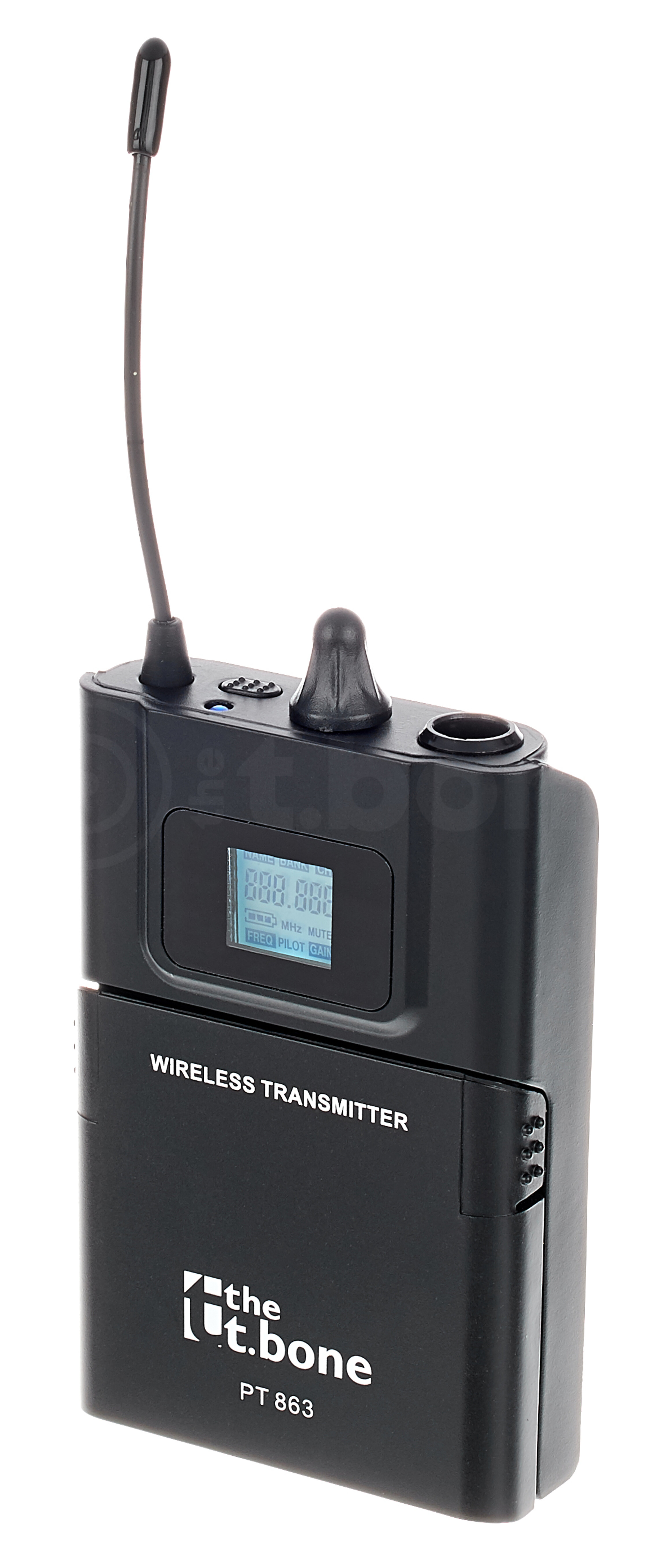

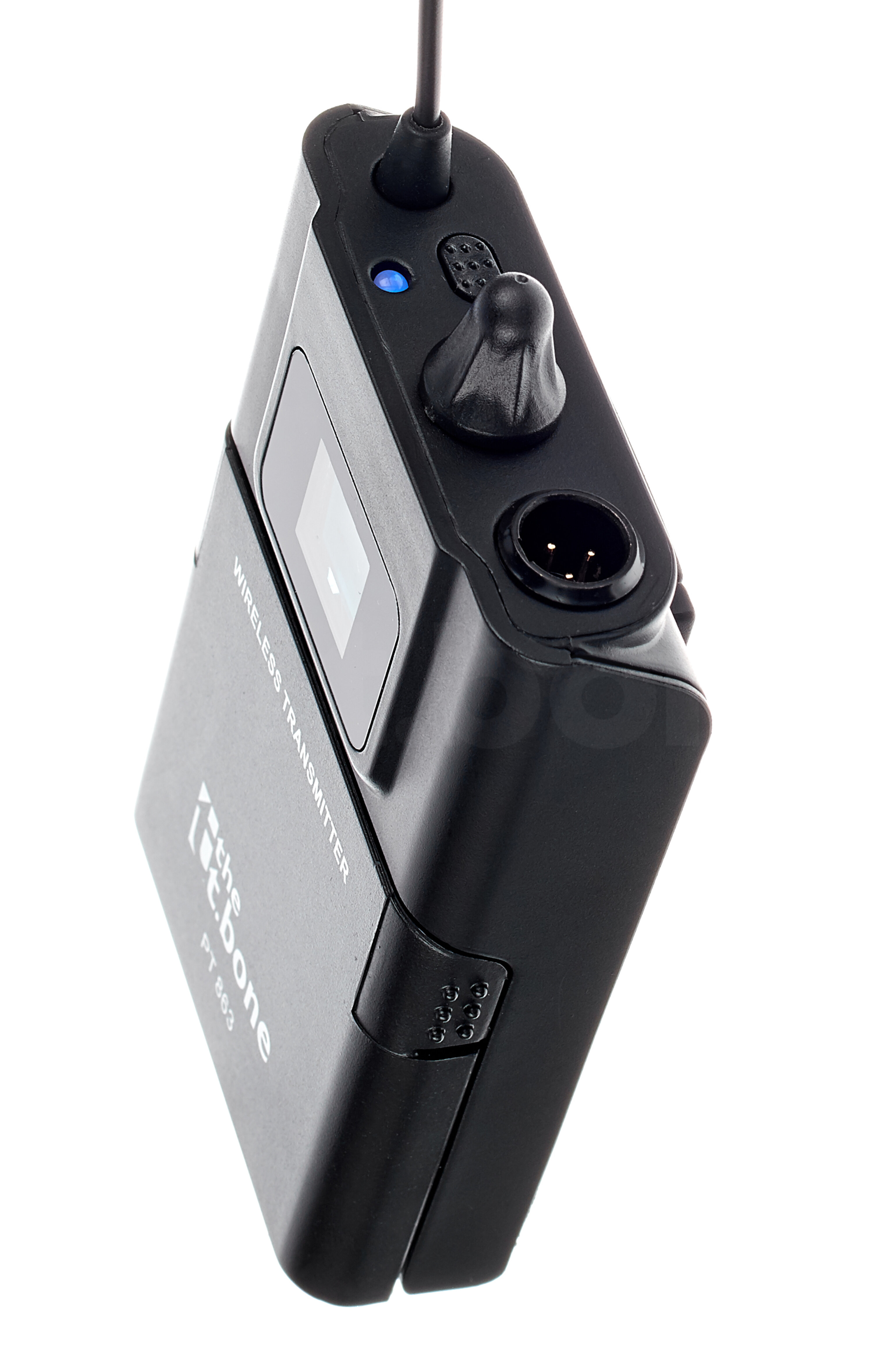

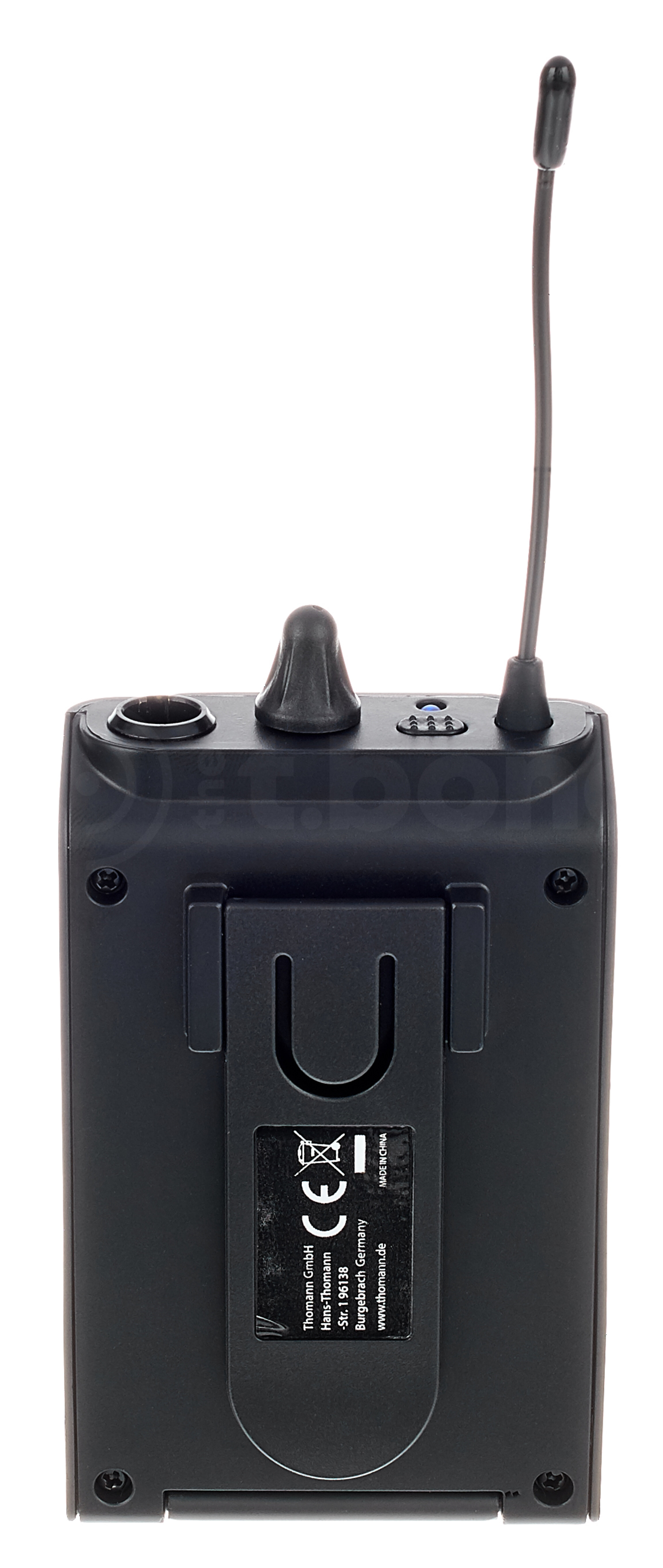

- Transmitter housing: Plastic
- LCD display

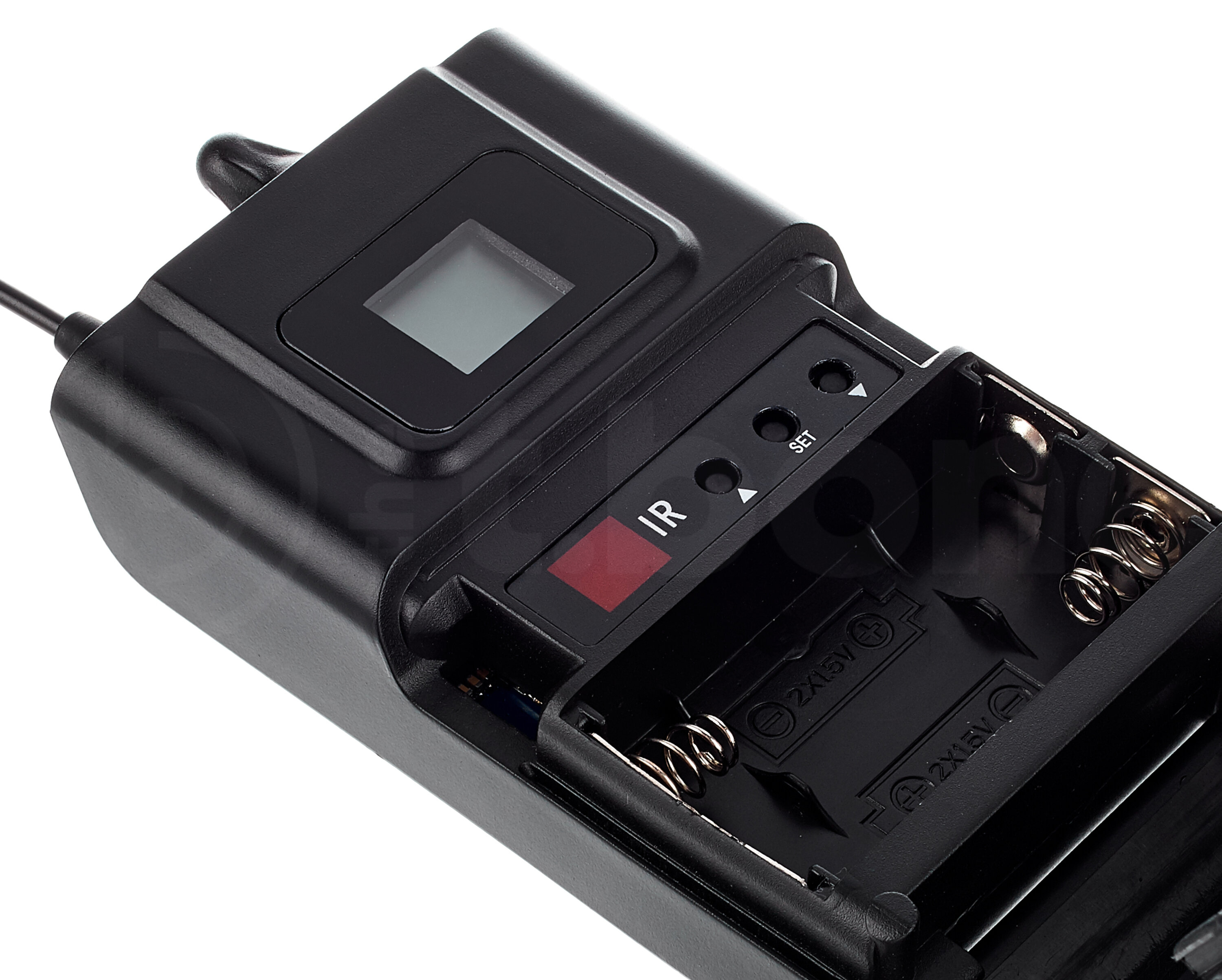

- Operates with 2 AA batteries or rechargeable batteries

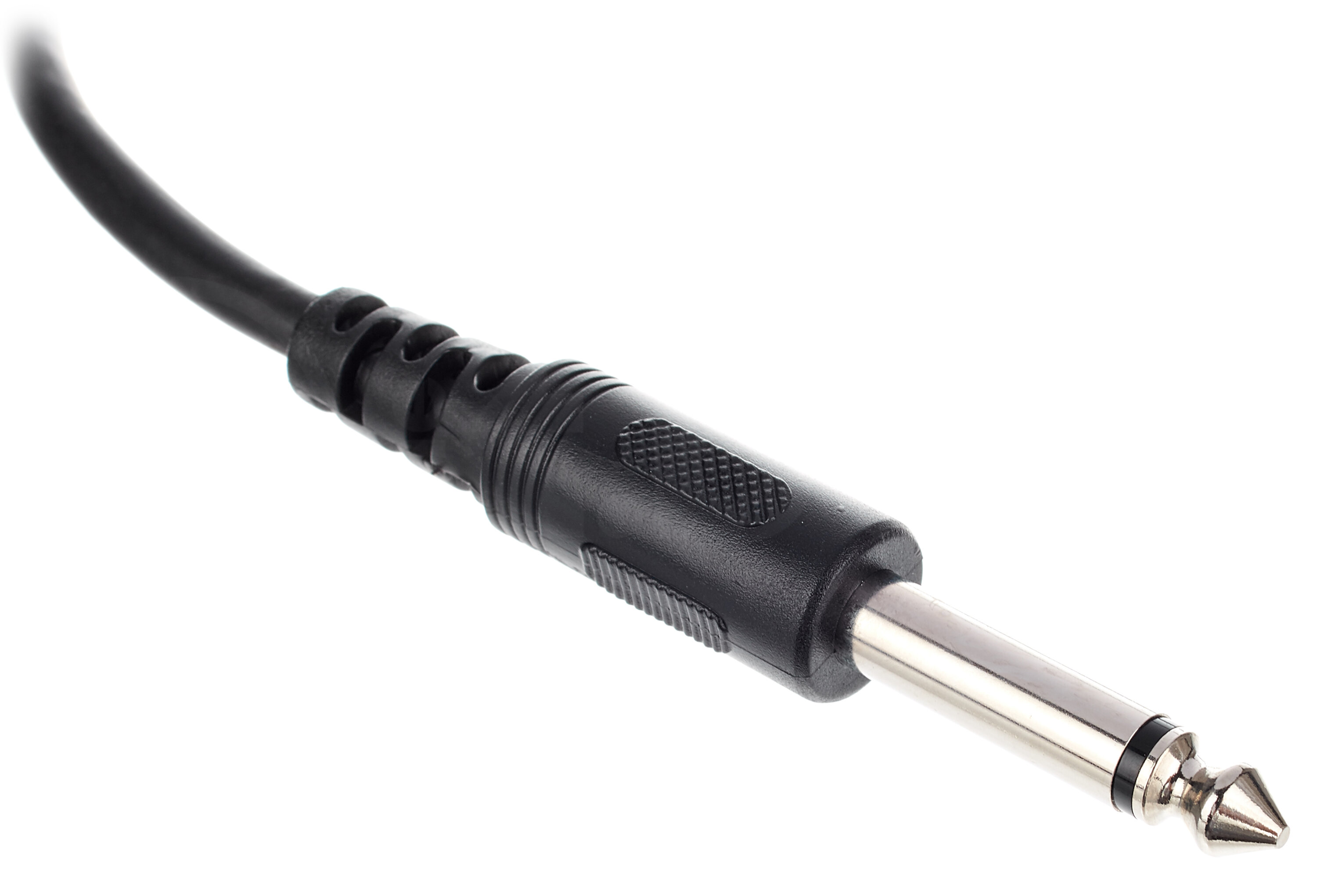

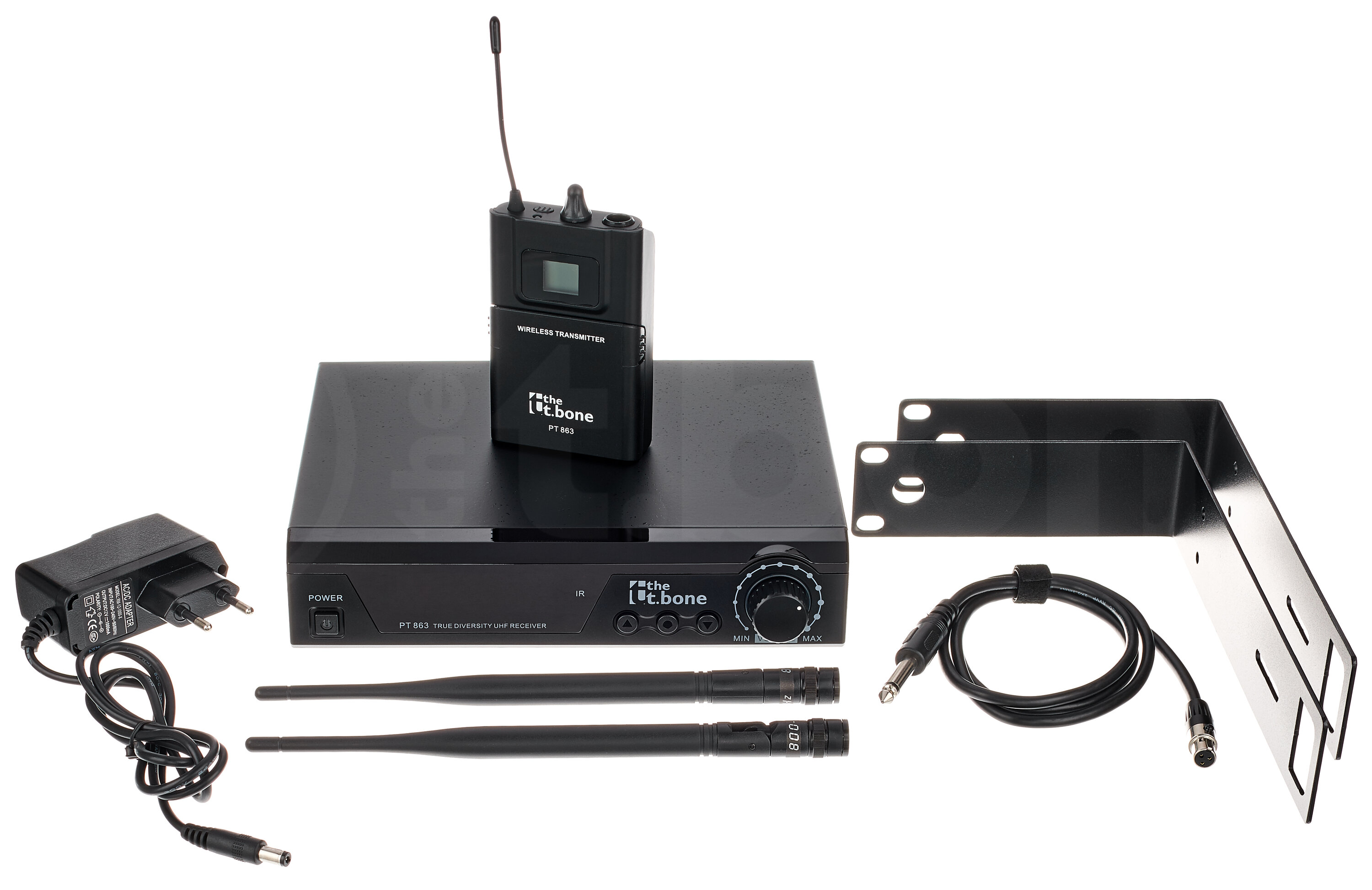

- Includes guitar cables, antennas, EU power supply and a rack kit for the installation of an 1 U receiver
- Includes a pocket transmitter with a guitar cable for applications with instruments
- Frequency band: 863 – 865 MHz
- Frequency range: 60 – 17,000 Hz
- 4 Pre-programmed frequency groups with 4 available channels each
- Auto squelch
- Frequency scan in the receiver
- Adjustable AF output
- Transmission power: 10 mW
- Infrared transfer of the settings from the receiver to the transmitter
- Pilot tone
- Increments of 125 kHz
- Modulation type: F3E
- LCD display
- Housing size: 9.5″, 1 U with 2 BNC antenna connectors
- XLR- and jack output
- Operates with a 12 V, 0.5 A DC power supply (positive polarity (+) inside)
- Transmitter housing: Plastic
- LCD display
- Operates with 2 AA batteries or rechargeable batteries
- Includes guitar cables, antennas, EU power supply and a rack kit for the installation of an 1 U receiver
- Includes a pocket transmitter with a guitar cable for applications with instruments
- Frequency band: 863 – 865 MHz
- Frequency range: 60 – 17,000 Hz
- 4 Pre-programmed frequency groups with 4 available channels each
- Auto squelch
- Frequency scan in the receiver
- Adjustable AF output
- Transmission power: 10 mW
- Infrared transfer of the settings from the receiver to the transmitter
- Pilot tone
- Increments of 125 kHz
- Modulation type: F3E
- LCD display
- Housing size: 9.5″, 1 U with 2 BNC antenna connectors
- XLR- and jack output
- Operates with a 12 V, 0.5 A DC power supply (positive polarity (+) inside)
- Transmitter housing: Plastic
- LCD display
- Operates with 2 AA batteries or rechargeable batteries
- Includes guitar cables, antennas, EU power supply and a rack kit for the installation of an 1 U receiver
Wireless without compromise

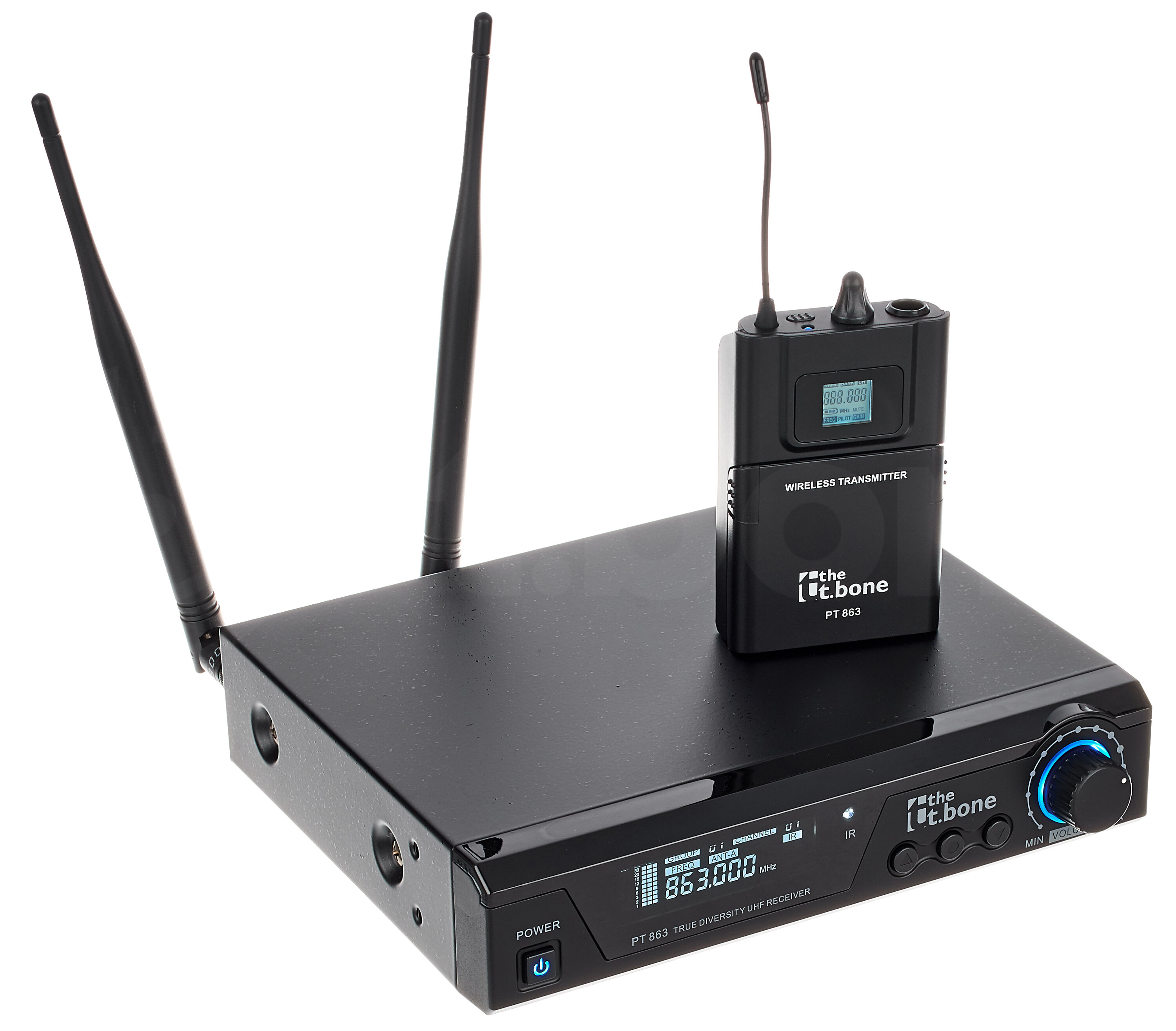

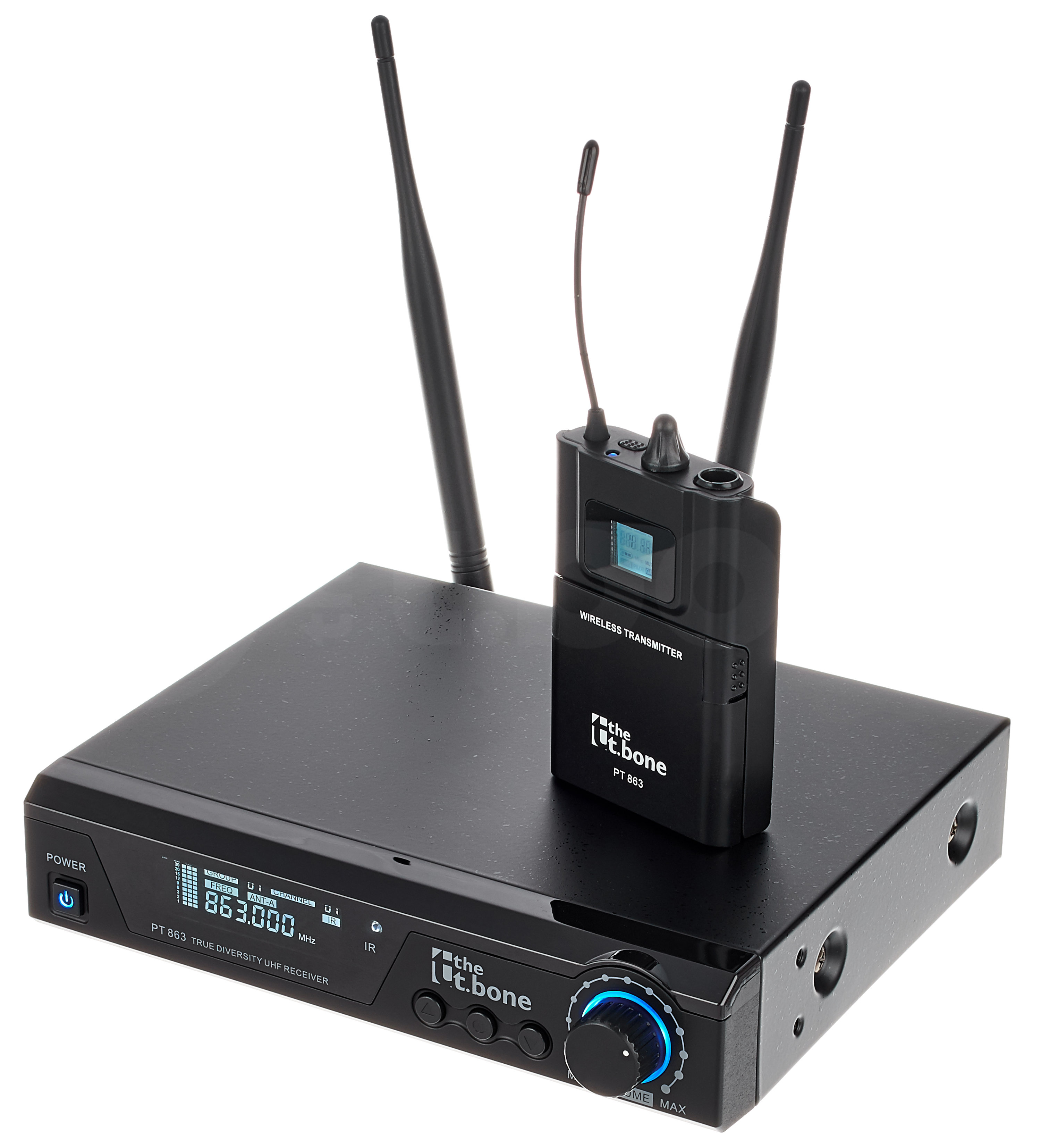

The t.bone freeU PT 863 brings professional wireless mobility to instrument applications without the high price tag. Operating in the ISM band (863 – 865 MHz), this system ensures a hassle-free setup across various regions. With 10 mW of transmission power and 4 pre-programmed frequency groups, it offers the stability and reach needed for reliable stage use. The infrared (IR) transfer of settings from the receiver to the transmitter makes synchronization fast and foolproof, allowing you to focus on your music rather than technical hurdles.
Pro features for effortless handling

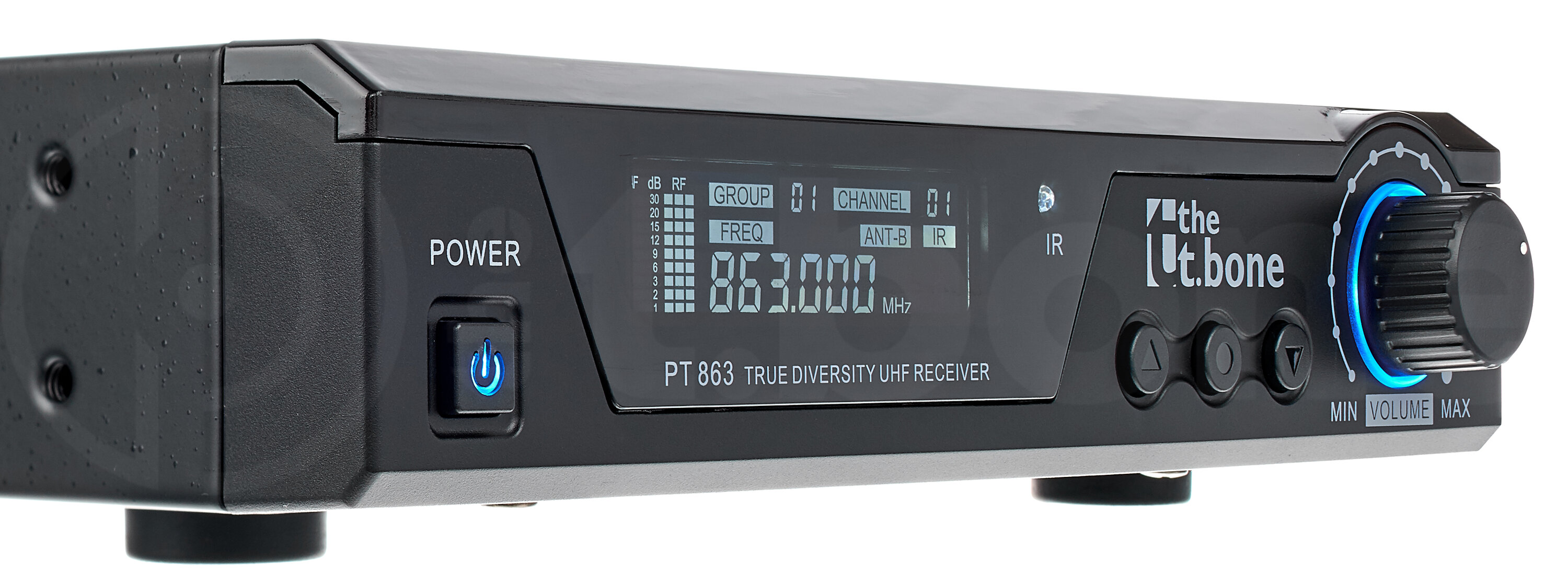

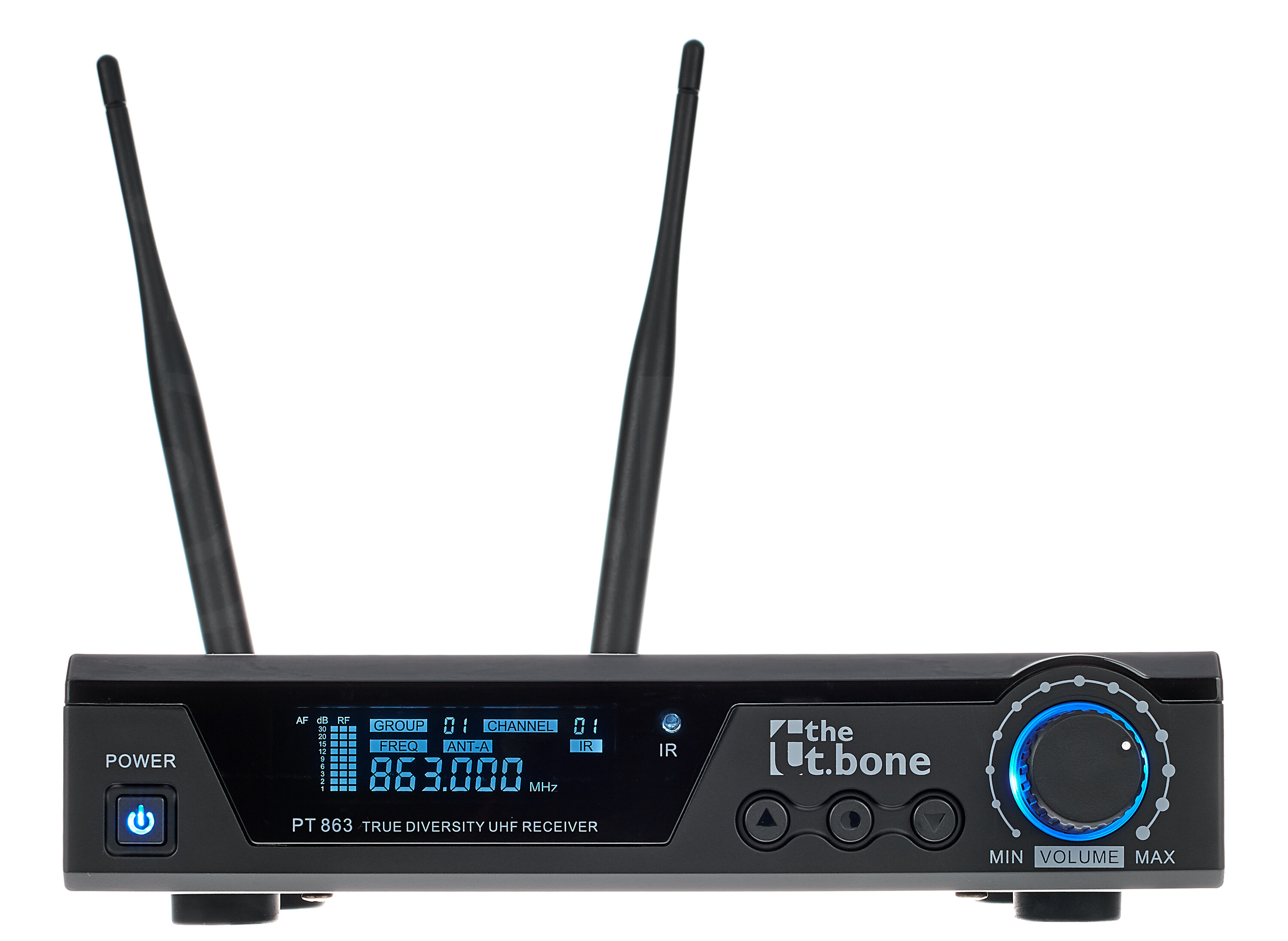

Designed for the rigors of live performance, the freeU PT 863 receiver is housed in a compact 9.5″ chassis, making it perfect for rack mounting using the included rack kit. Clear LCD displays on both the receiver and the pocket transmitter provide essential status information at a glance. Advanced features such as auto-squelch, pilot tone, and automatic frequency scanning ensure a clean, interference-free signal path, while the adjustable AF output allows for perfect gain staging with your amplifier or mixer.
Reliable freedom for every stage

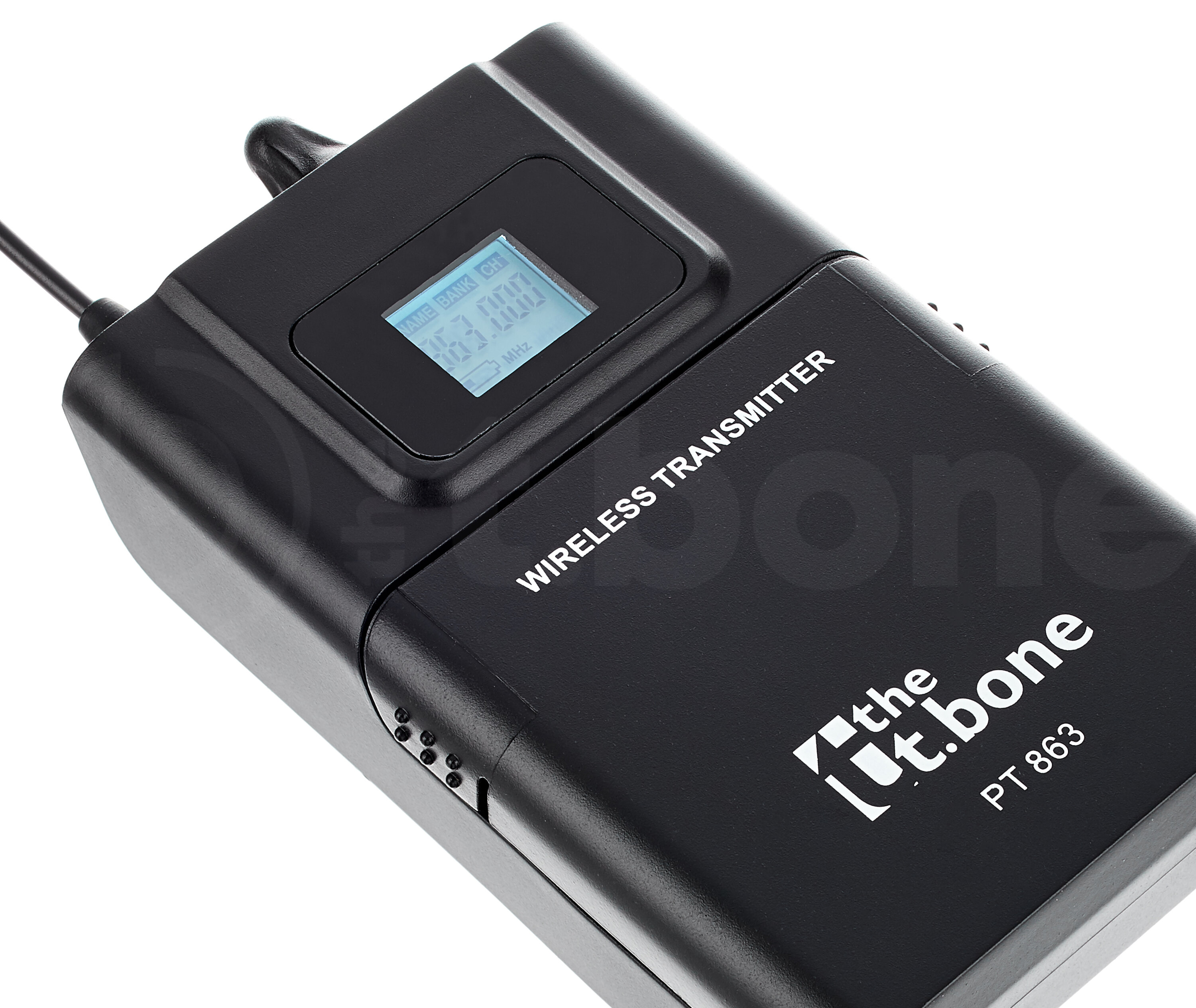

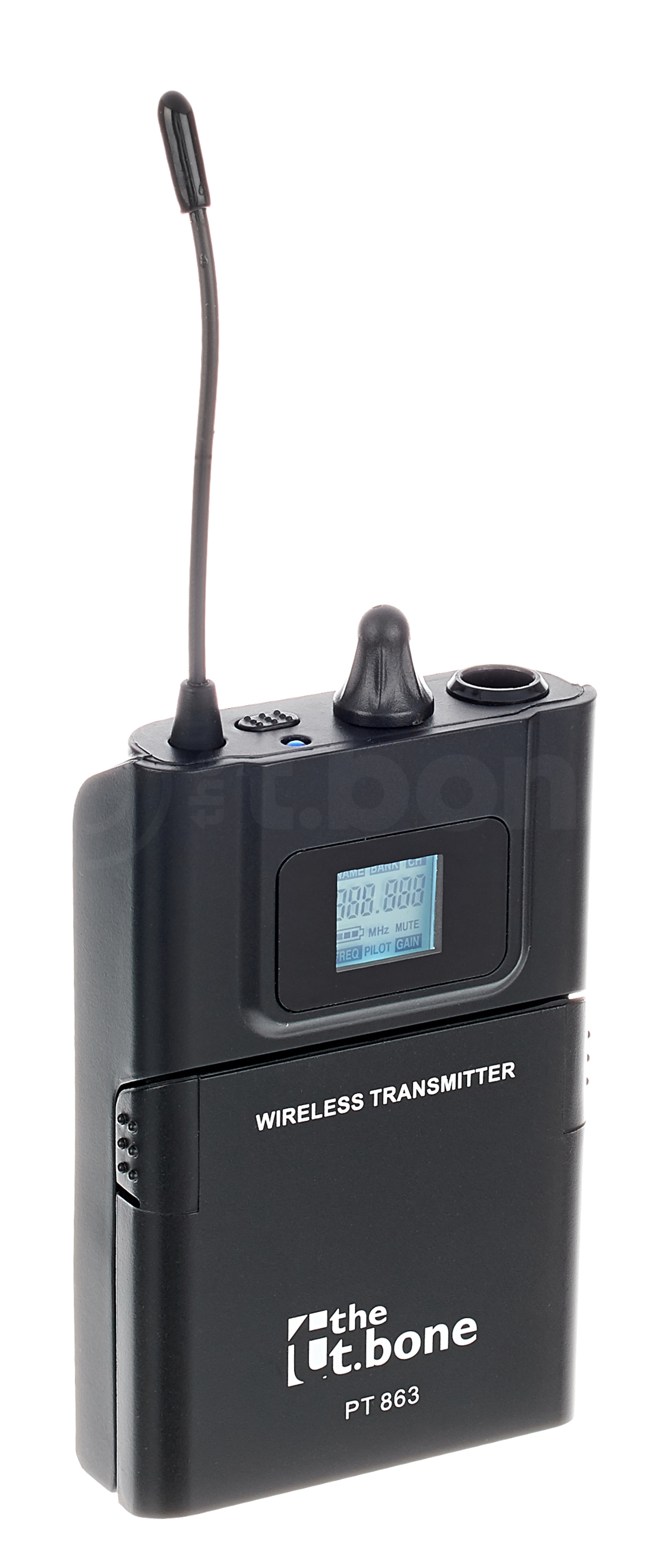

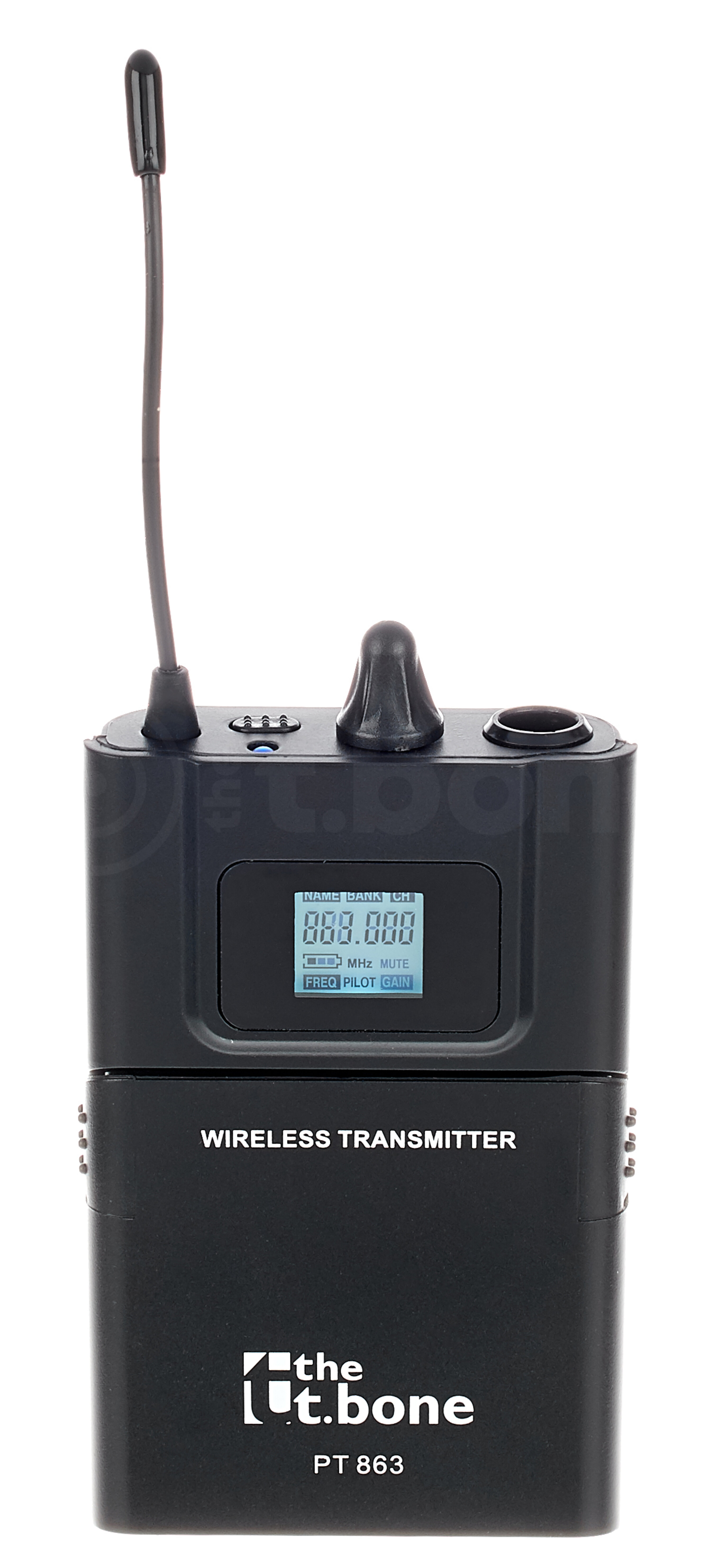

The freeU PT 863 is the ultimate plug-and-play solution for musicians looking to cut the cord. The lightweight pocket transmitter operates on standard AA batteries, ensuring easy power management for long gigs. The system comes complete with a high-quality guitar cable, antennas, and an EU power supply, so you’re ready to perform right out of the box. With the ability to operate up to two systems simultaneously, it is the ideal choice for soloists and small bands seeking professional wireless freedom.
