Specifications

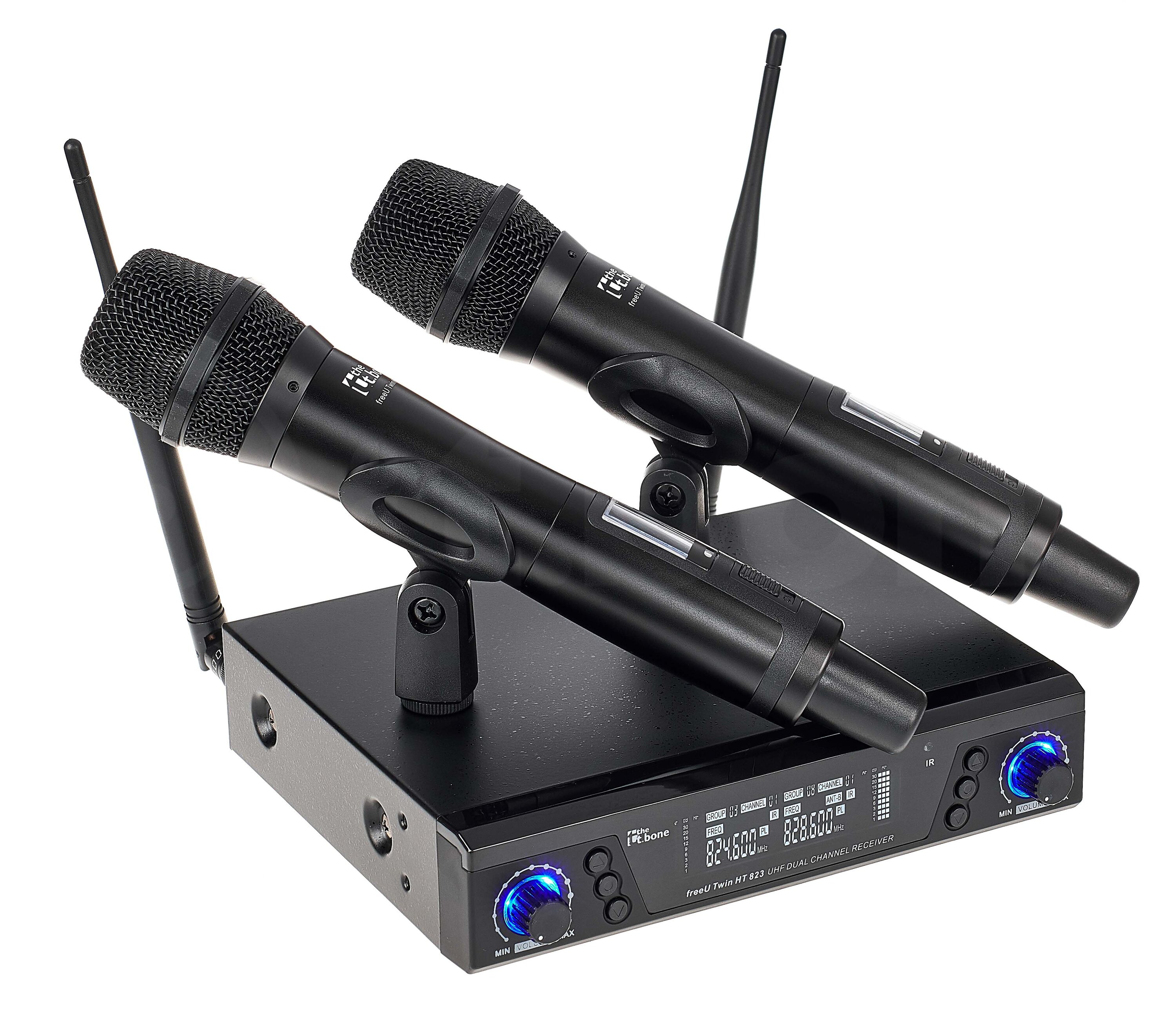

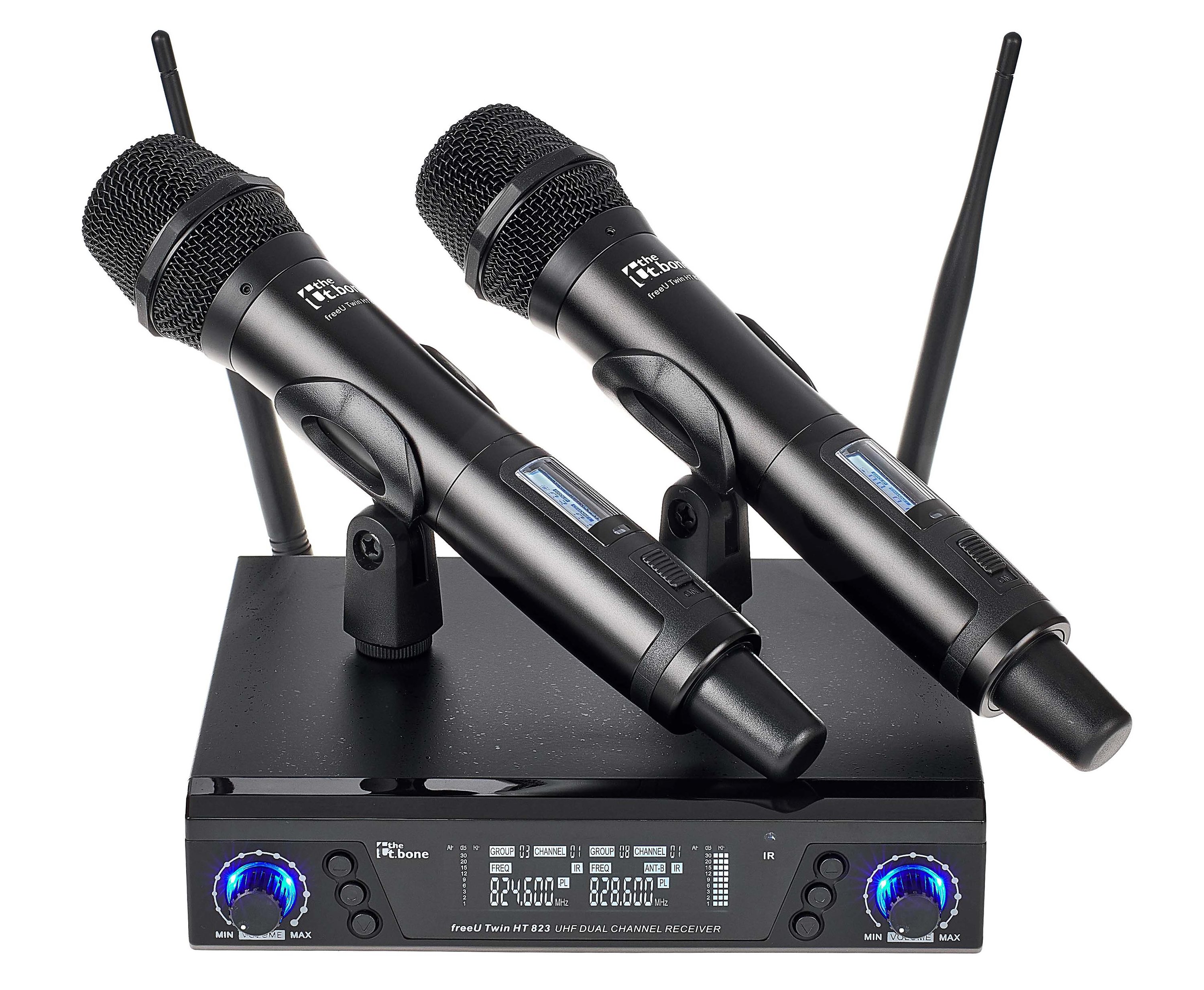

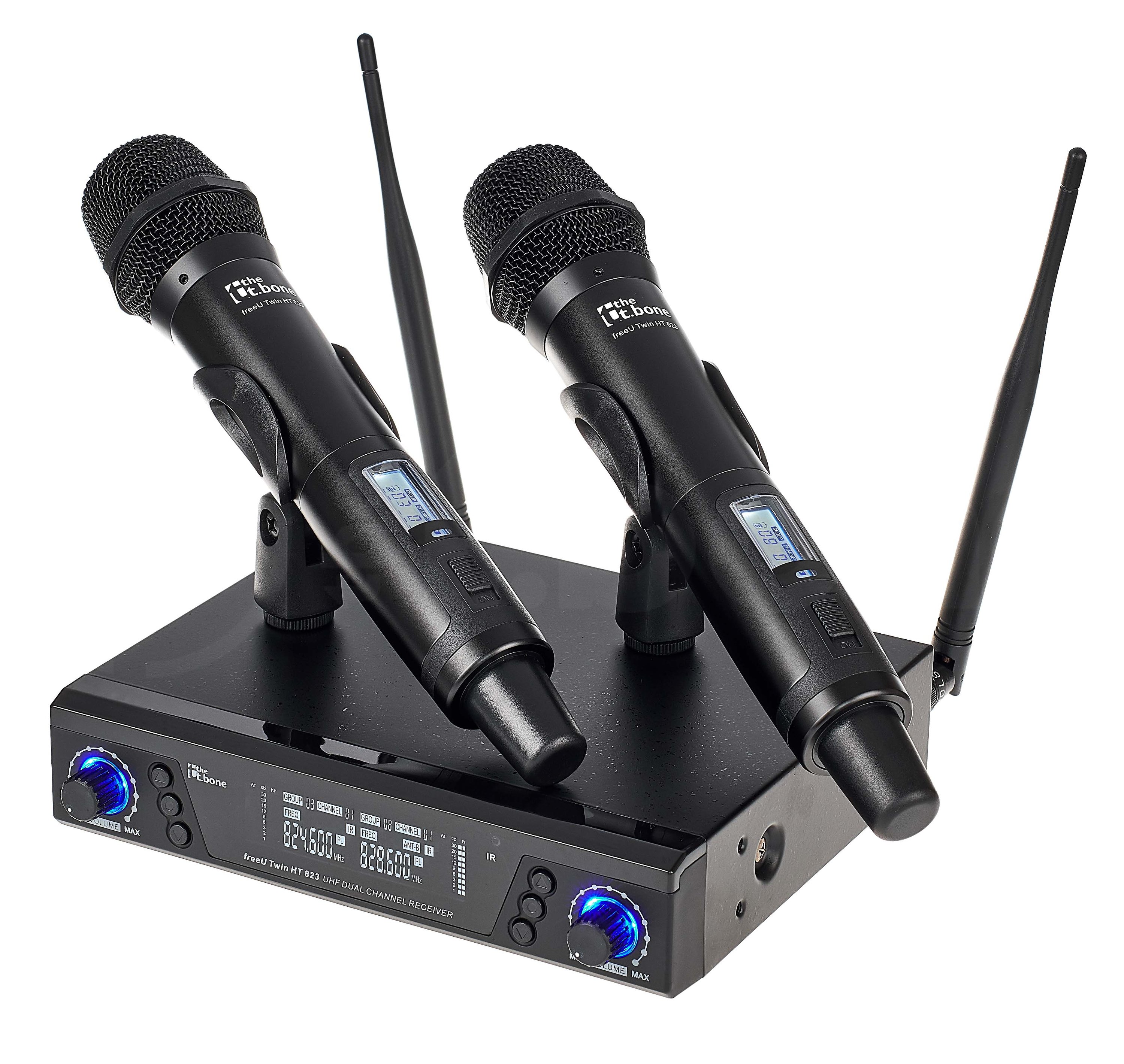

the t.bone free U twin HT 823
2-Channel UHF Wireless System with Handheld Transmitter
- Frequency band: 823 – 832 MHz
- Dynamic capsule
- Directivity: Super-cardioid
- Frequency range: 50 – 16,000 Hz
- 10 Preprogrammed frequency groups, each with 10 channels
- Auto squelch
- Frequency scanning at the receiver
- Adjustable AF out
- 30 mW transmitter power
- Infrared transmission setting from the receiver to the transmitter
- Pilot tone
- 80 kHz frequency grid
- Modulation type F3E

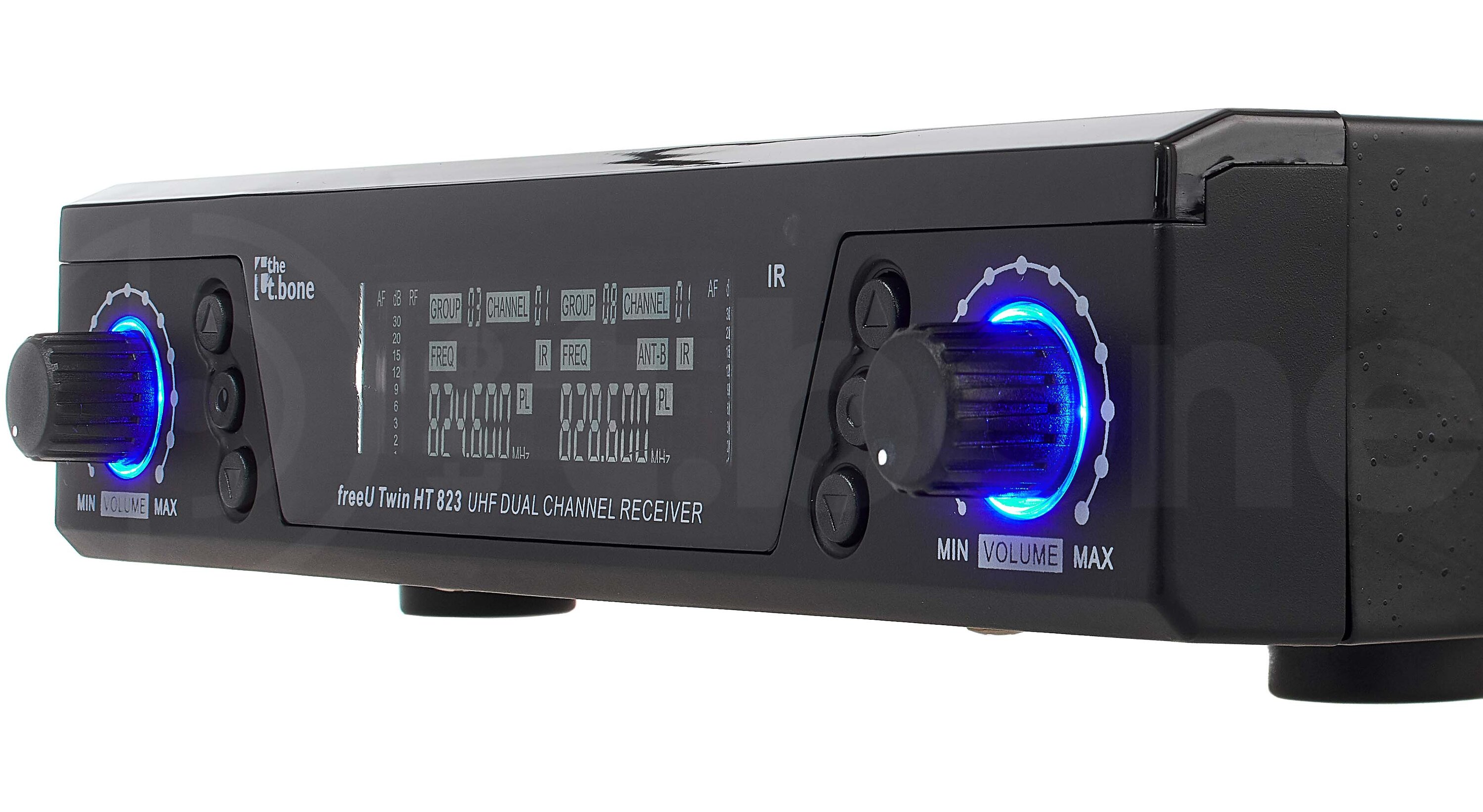

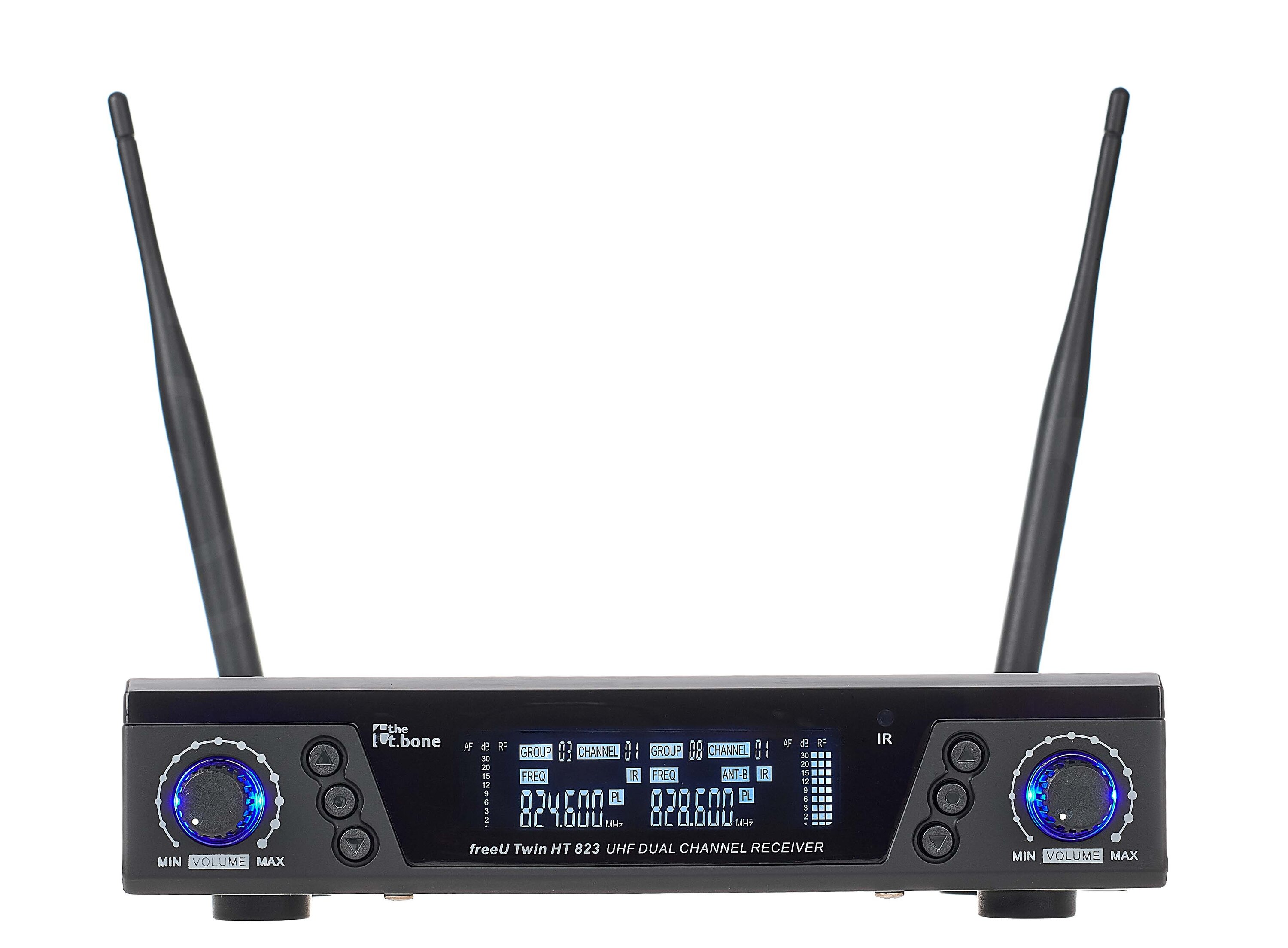

- LC-Display

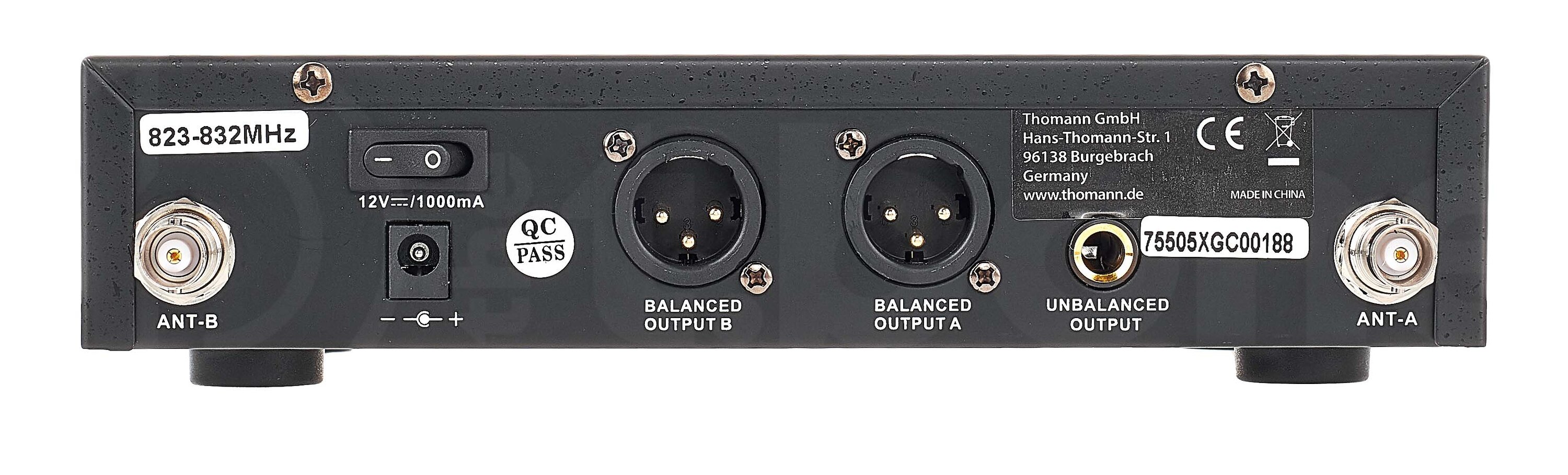

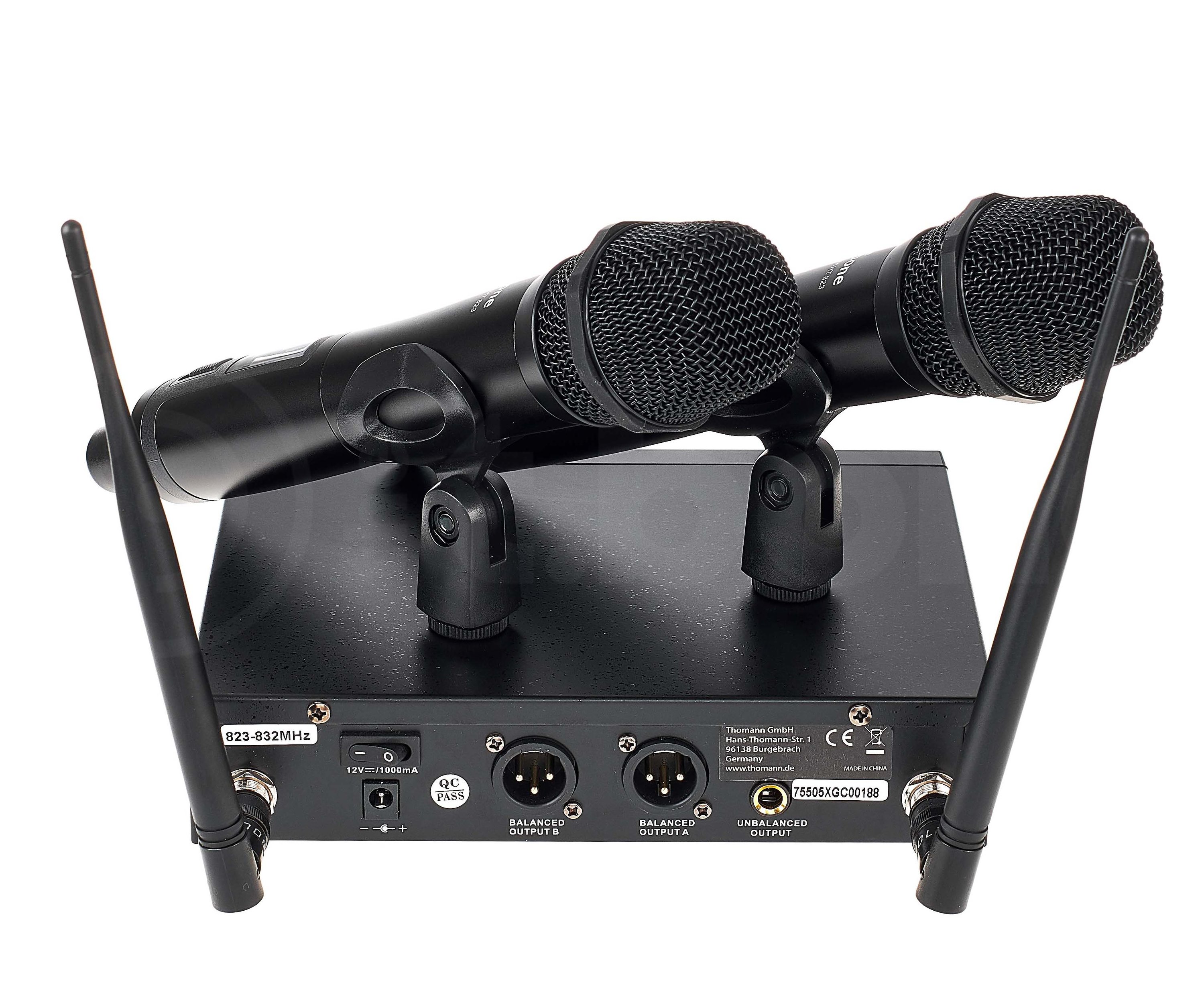

- 2x BNC connection for antennas
- 2x XLR output
- 1x Jack output (mono summed)
- Operates on 12V 1A DC power supply (+ inside)

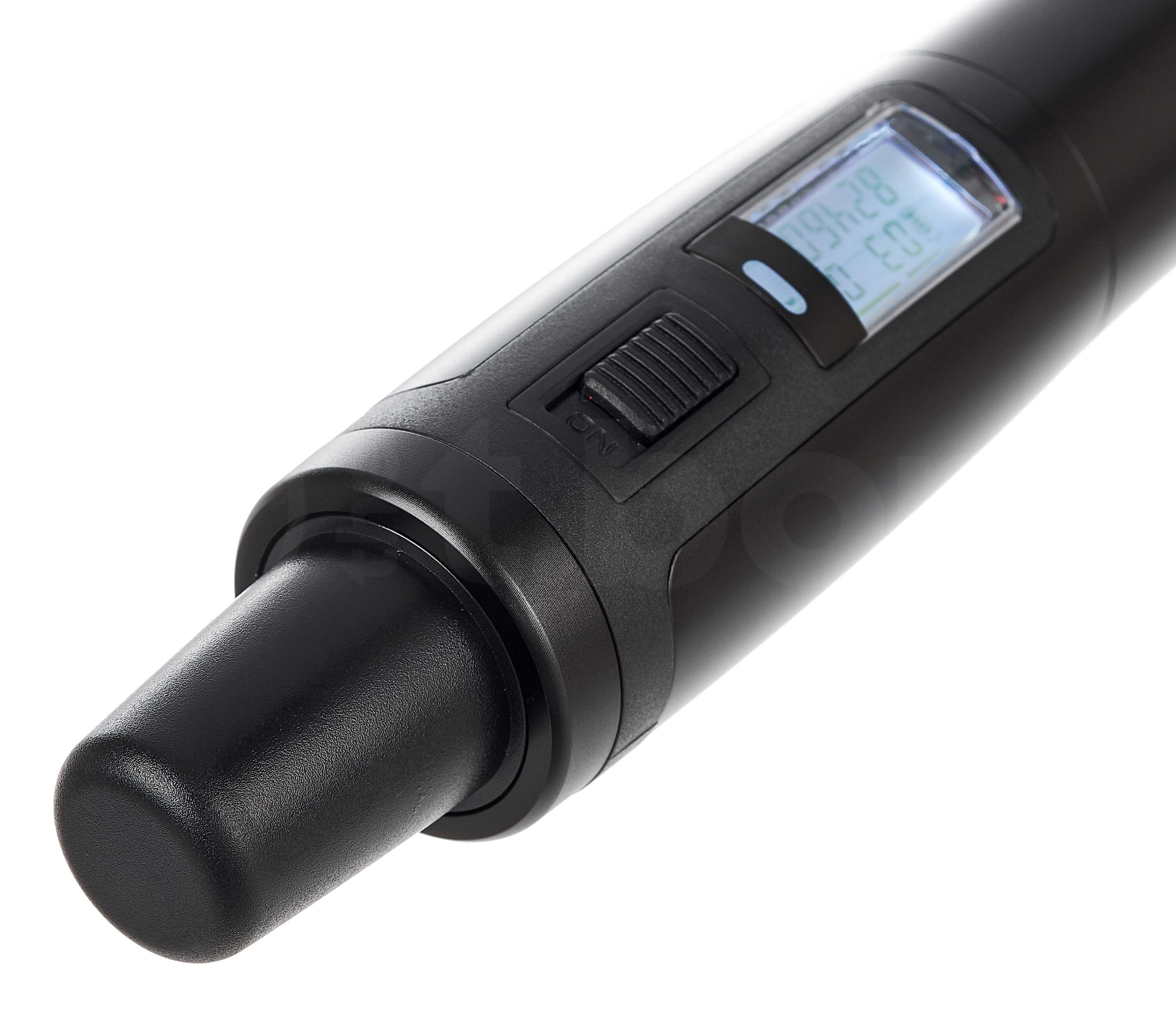

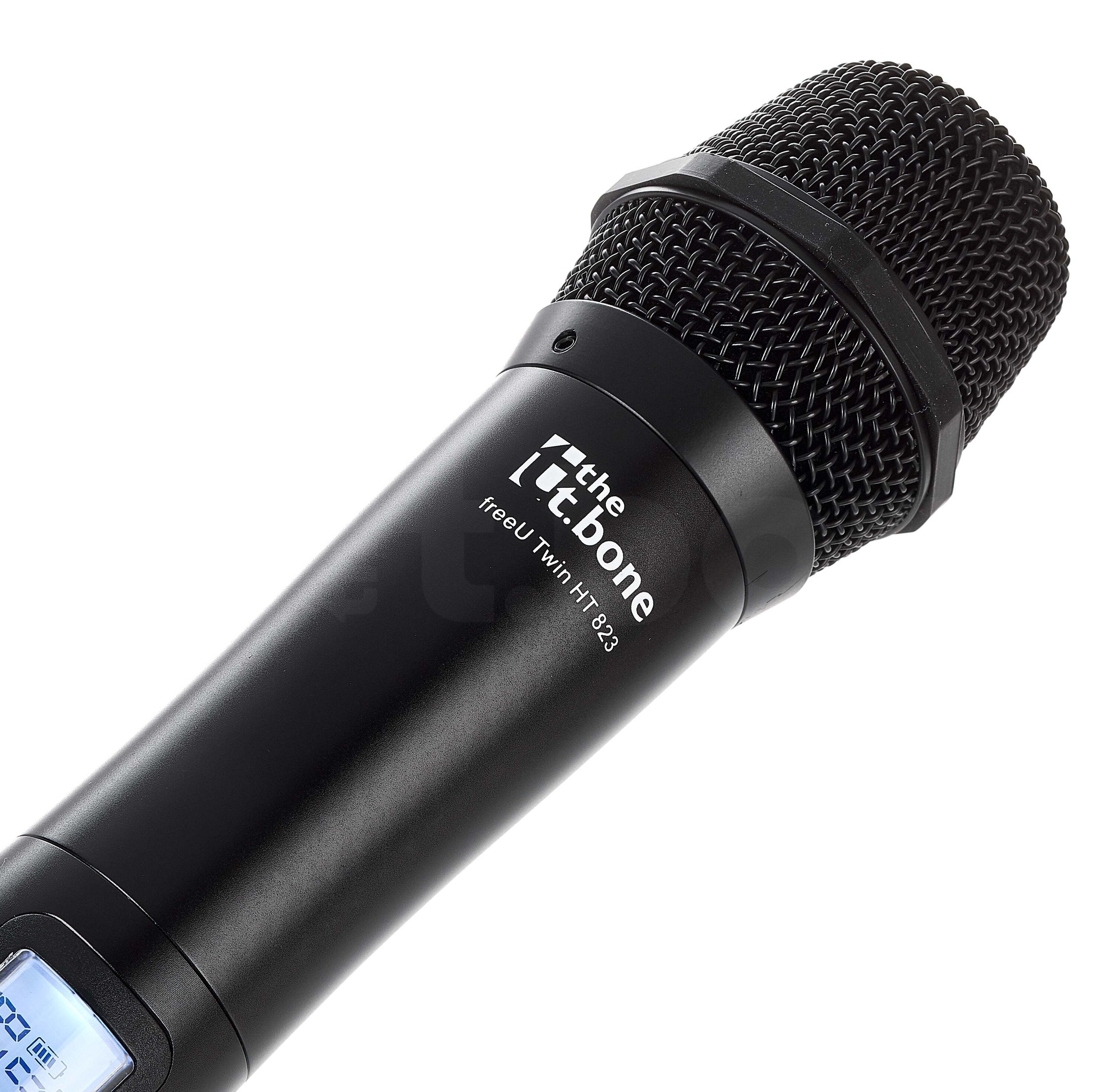

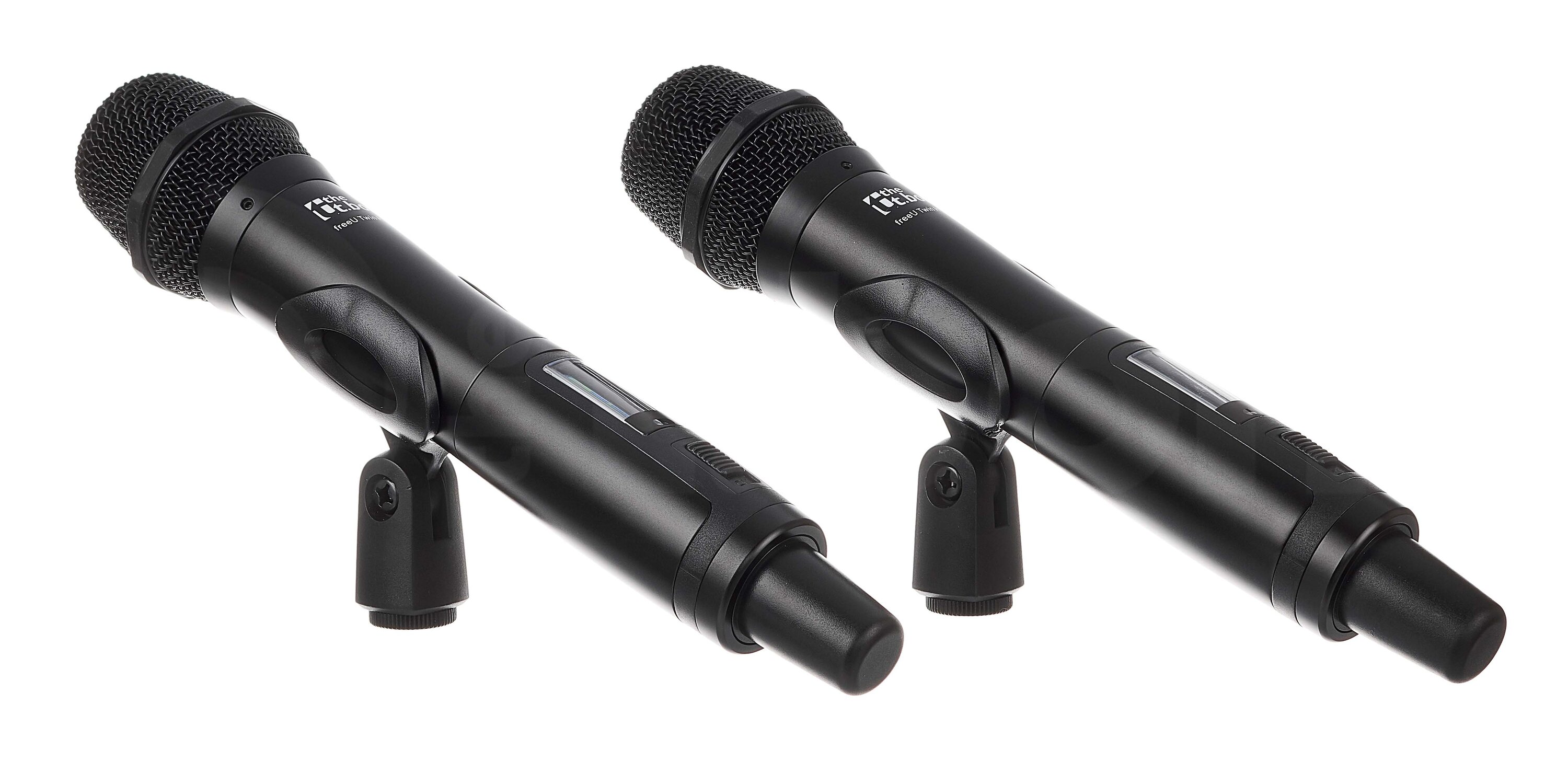

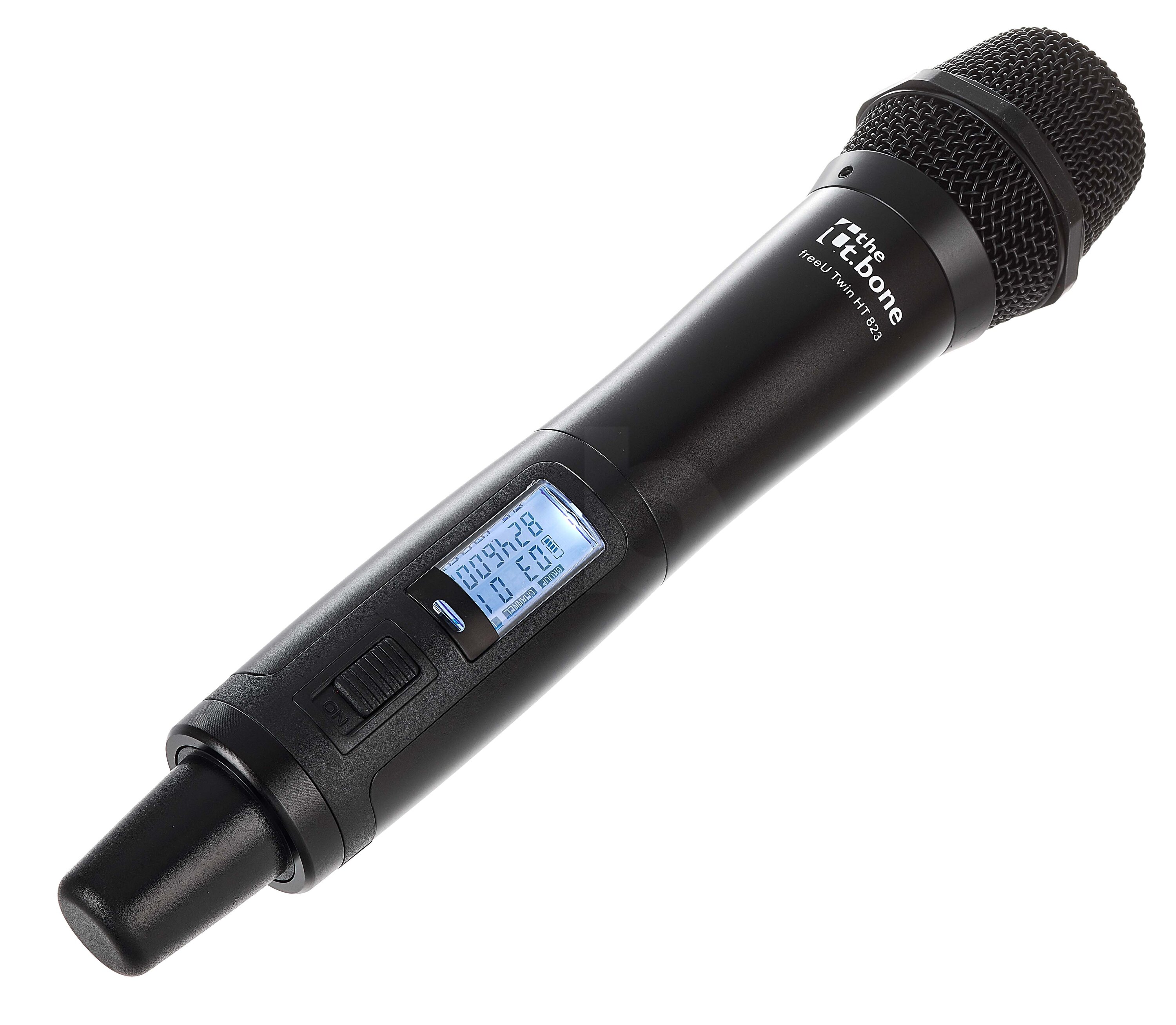

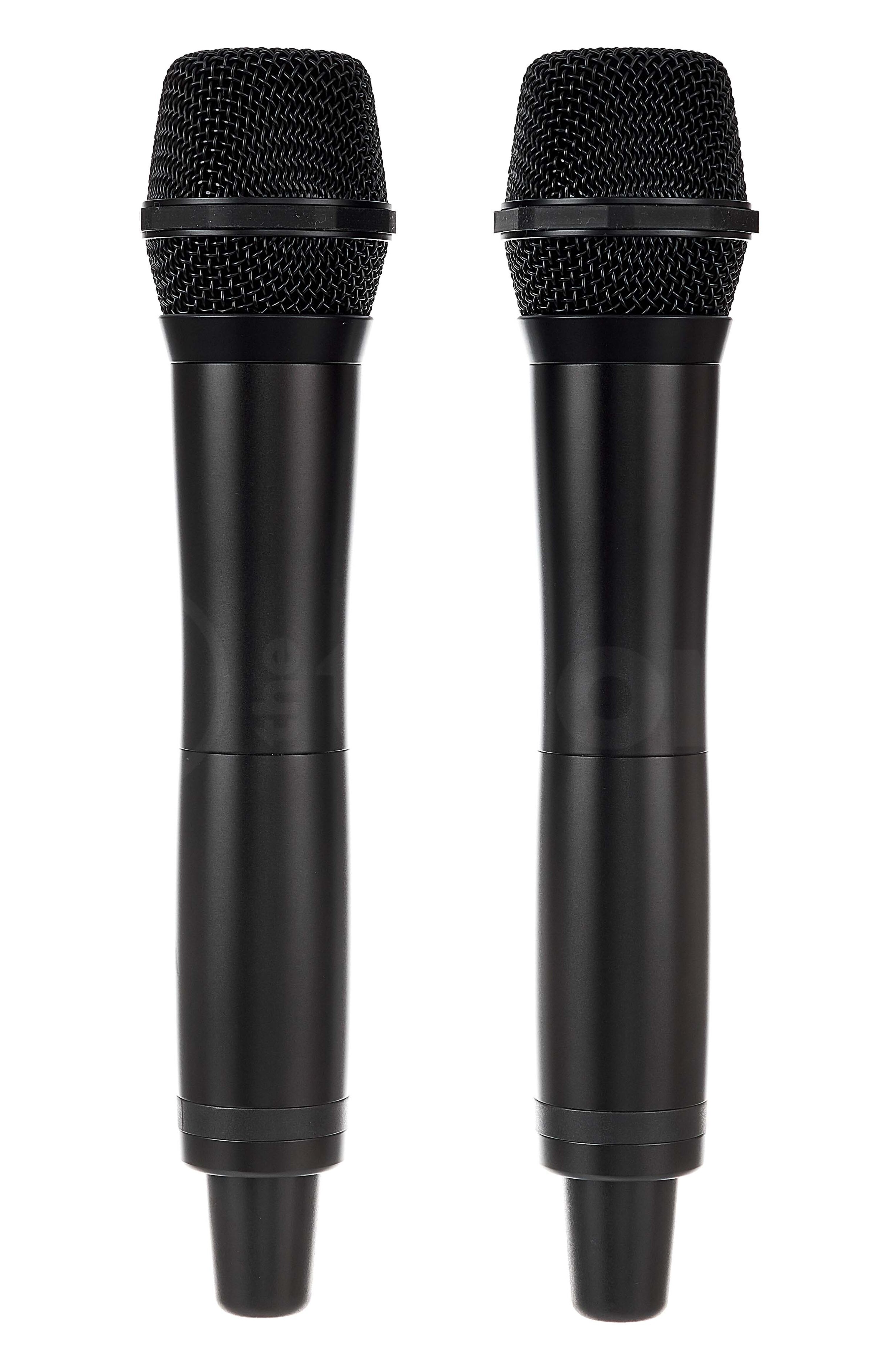

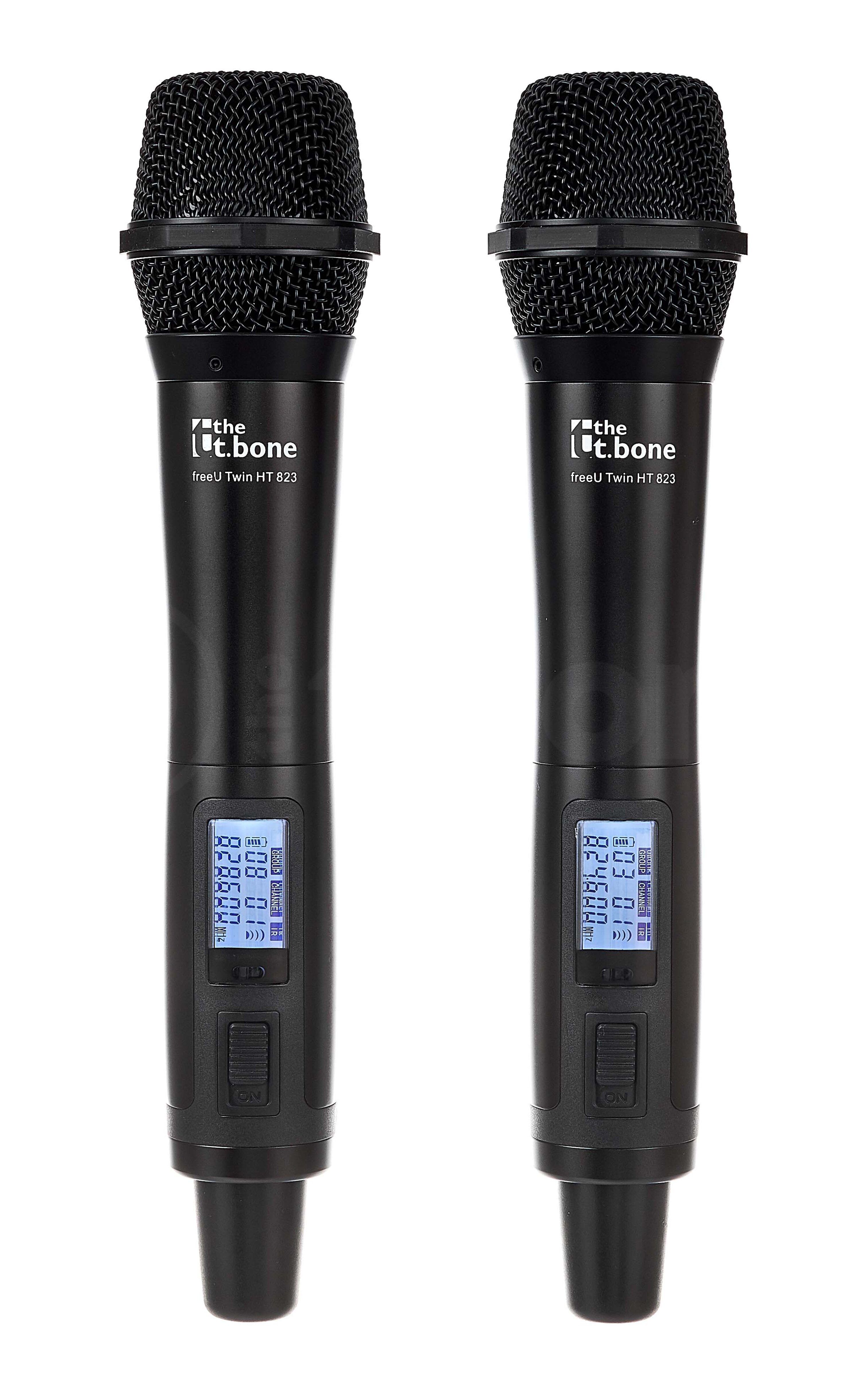

- Dynamic hand-held transmitter with metal housing and LC display
- Optional antenna converter: Art.#177448# (not included)
- Hand-held transmitter with 2 x AA batteries or rechargeable batteries
- 9.5″/ 1U housing

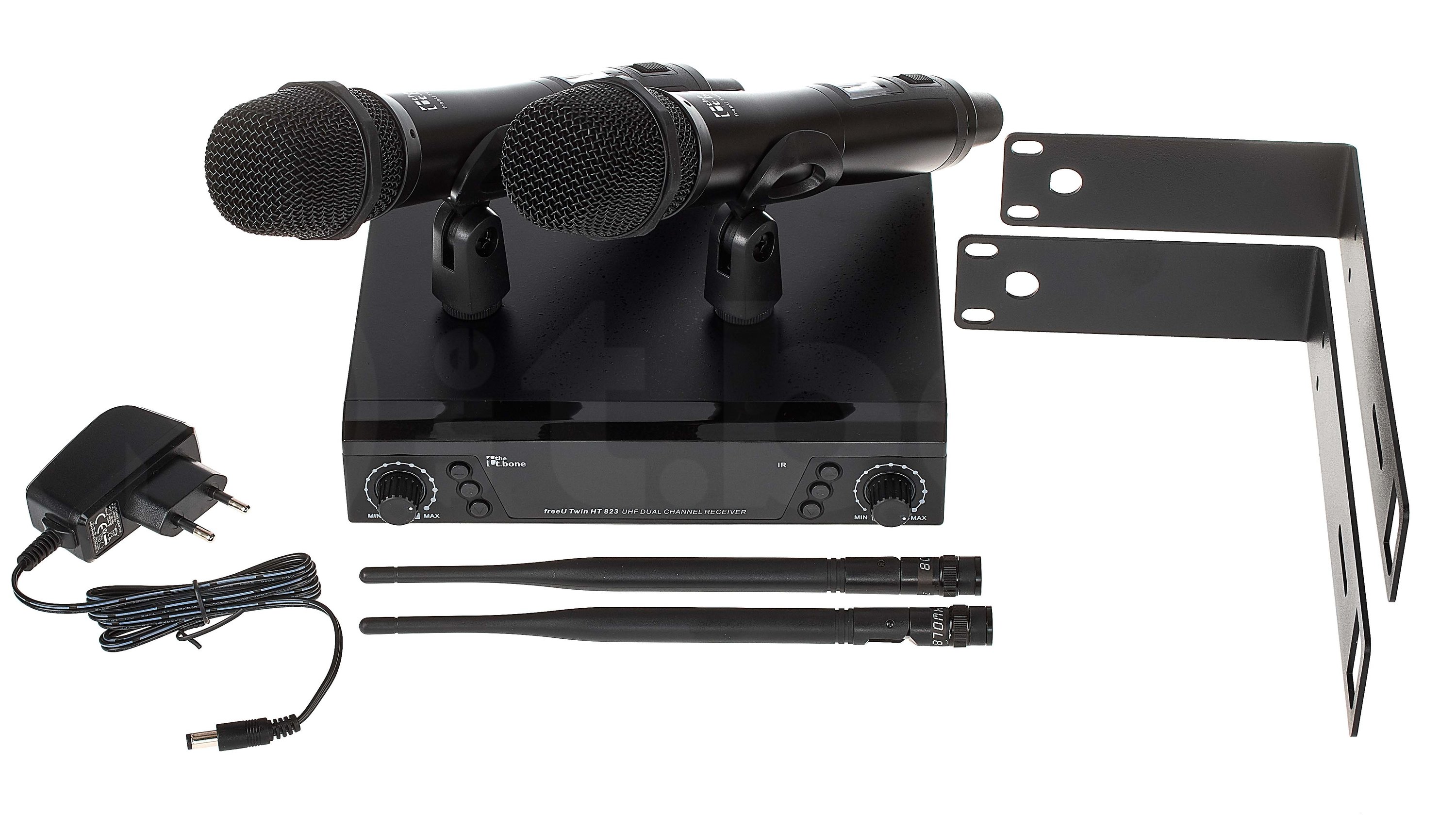

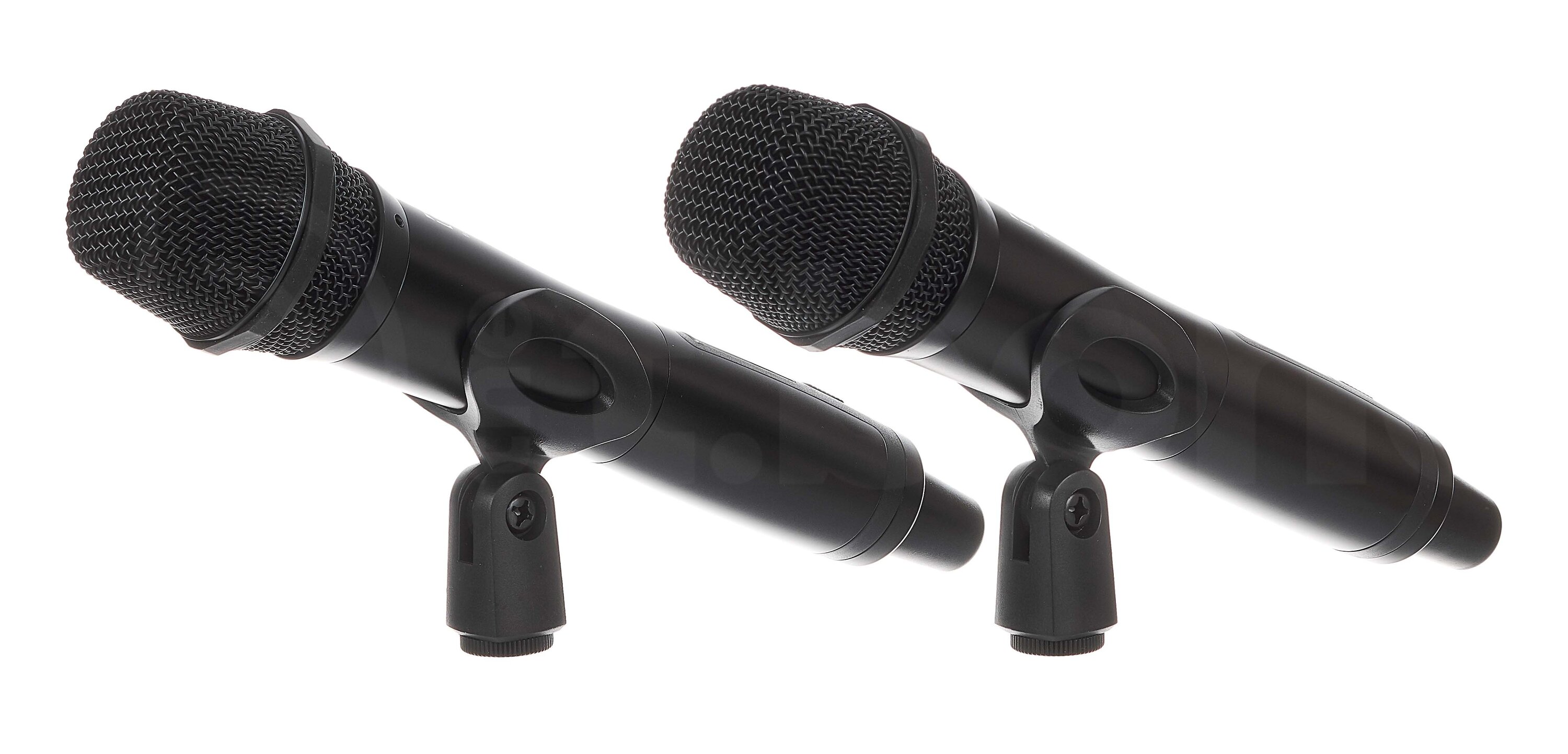

- Includes microphone holder, antennas, EU power supply unit, rack kit for mounting a receiver on 1U housing
- Frequency band: 823 – 832 MHz
- Dynamic capsule
- Directivity: Super-cardioid
- Frequency range: 50 – 16,000 Hz
- 10 Preprogrammed frequency groups, each with 10 channels
- Auto squelch
- Frequency scanning at the receiver
- Adjustable AF out
- 30 mW transmitter power
- Infrared transmission setting from the receiver to the transmitter
- Pilot tone
- 80 kHz frequency grid
- Modulation type F3E
- LC-Display
- 2x BNC connection for antennas
- 2x XLR output
- 1x Jack output (mono summed)
- Operates on 12V 1A DC power supply (+ inside)
- Dynamic hand-held transmitter with metal housing and LC display
- Optional antenna converter: Art.#177448# (not included)
- Hand-held transmitter with 2 x AA batteries or rechargeable batteries
- 9.5″/ 1U housing
- Includes microphone holder, antennas, EU power supply unit, rack kit for mounting a receiver on 1U housing
- Frequency band: 823 – 832 MHz
- Dynamic capsule
- Directivity: Super-cardioid
- Frequency range: 50 – 16,000 Hz
- 10 Preprogrammed frequency groups, each with 10 channels
- Auto squelch
- Frequency scanning at the receiver
- Adjustable AF out
- 30 mW transmitter power
- Infrared transmission setting from the receiver to the transmitter
- Pilot tone
- 80 kHz frequency grid
- Modulation type F3E
- LC-Display
- 2x BNC connection for antennas
- 2x XLR output
- 1x Jack output (mono summed)
- Operates on 12V 1A DC power supply (+ inside)
- Dynamic hand-held transmitter with metal housing and LC display
- Optional antenna converter: Art.#177448# (not included)
- Hand-held transmitter with 2 x AA batteries or rechargeable batteries
- 9.5″/ 1U housing
- Includes microphone holder, antennas, EU power supply unit, rack kit for mounting a receiver on 1U housing
For singers and speakers
The dynamic mics included in this set have supercardioid polar patterns that focus strongly on the sound sources directly in front of them. Their frequency range reaches from 50 Hz to 16 kHz, making the microphones well-suited for singers and speakers alike. The transmitters use the 823 to 832 MHz frequency band with a transmission power of 10 mW. This means that the system can be used free of charge and without registration across Europe.
From pub to stage
With a maximum range of 50 meters, the t.bone freeU Twin HT 823 makes a great affordable wireless system for performing in bars, pubs and on smaller stages. Since their bodies are made of metal, the handheld mics are sturdy enough for frequent use and transportation. And thanks to the backlit LCD displays, setting up the system is a breeze – even in low-light situations. Presenters will find this wireless microphone system useful at trade shows, corporate events, book presentations, and anywhere else a reliable wireless mic is required. You can even use it in the rehearsal room to avoid cluttering the room with audio cables.
Plenty of flexibility
With four pre-programmed frequency groups with four channels each, the freeU Twin HT 823 system offers plenty of flexibility for finding interference-free frequencies. An automatic frequency scan function is just one of the many professional features of this affordable wireless system. The automatic squelch function prevents loud noises from occurring under unfavourable conditions. The settings of the receiver can be sent to the handheld transmitter via infrared. And the system even uses a pilot tone to ensure a reliable wireless connection. By the way, the microphones work for up to 10 hours with two AA batteries.
