Specifications

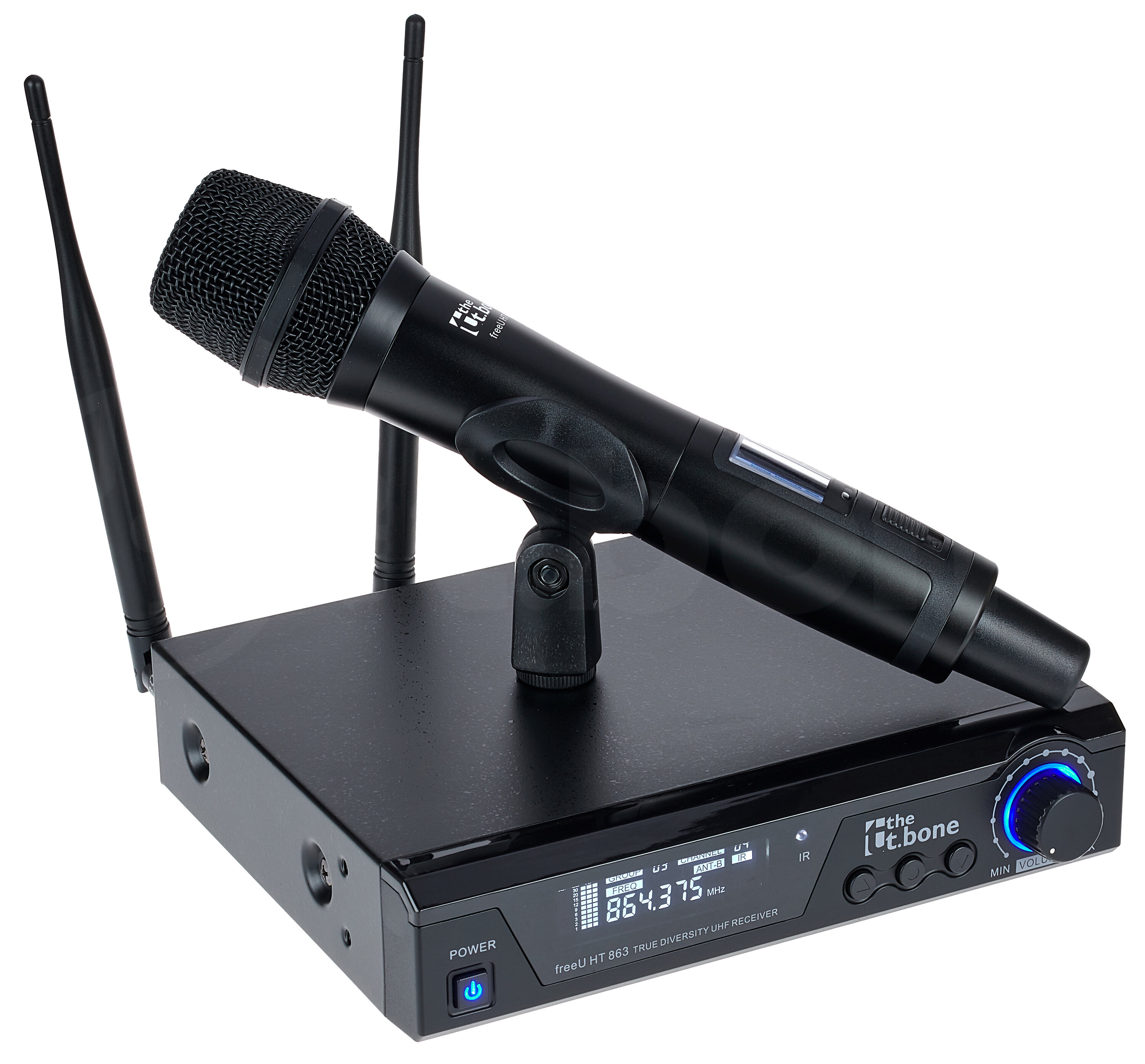

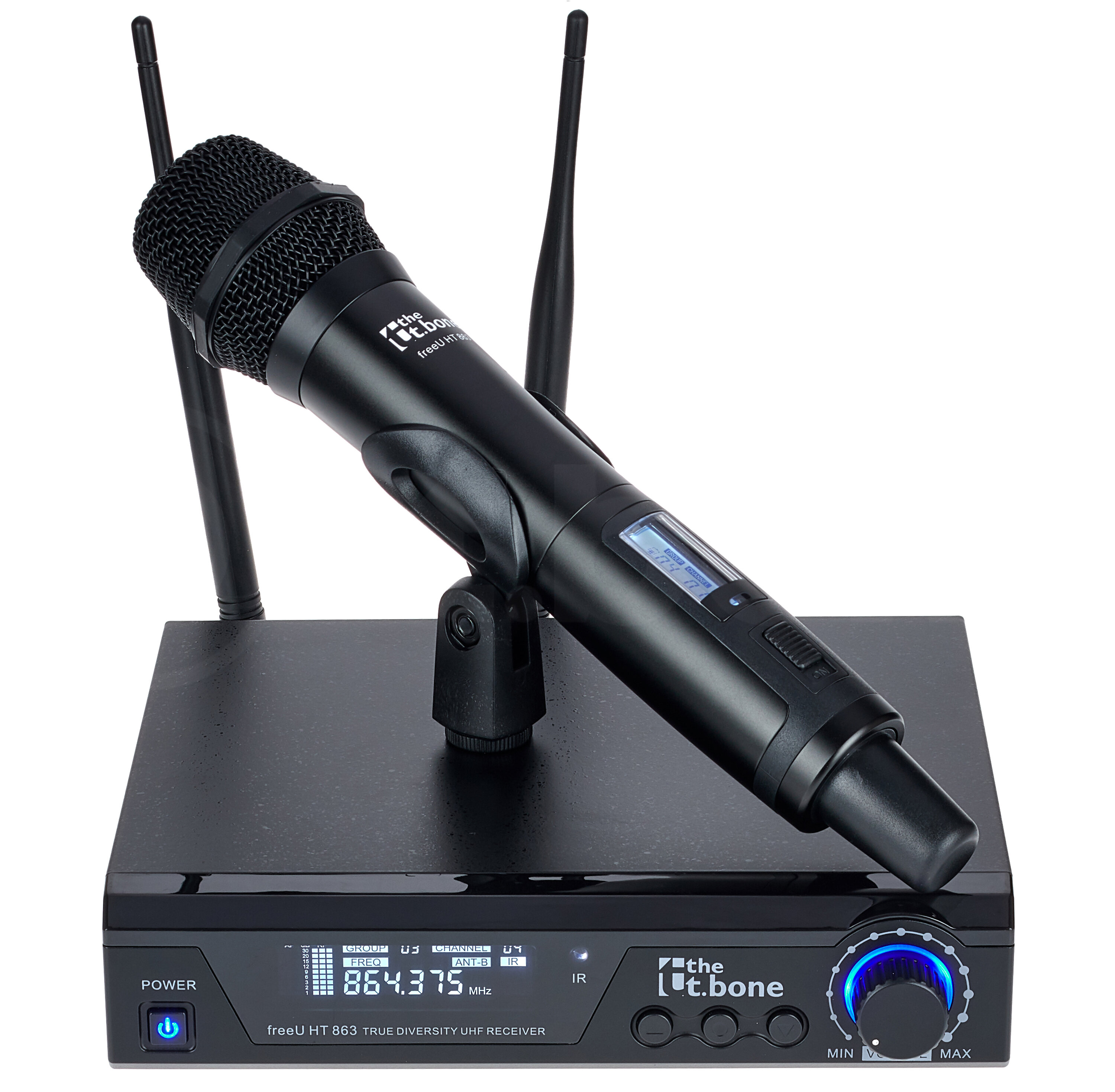

the t.bone freeU HT 863

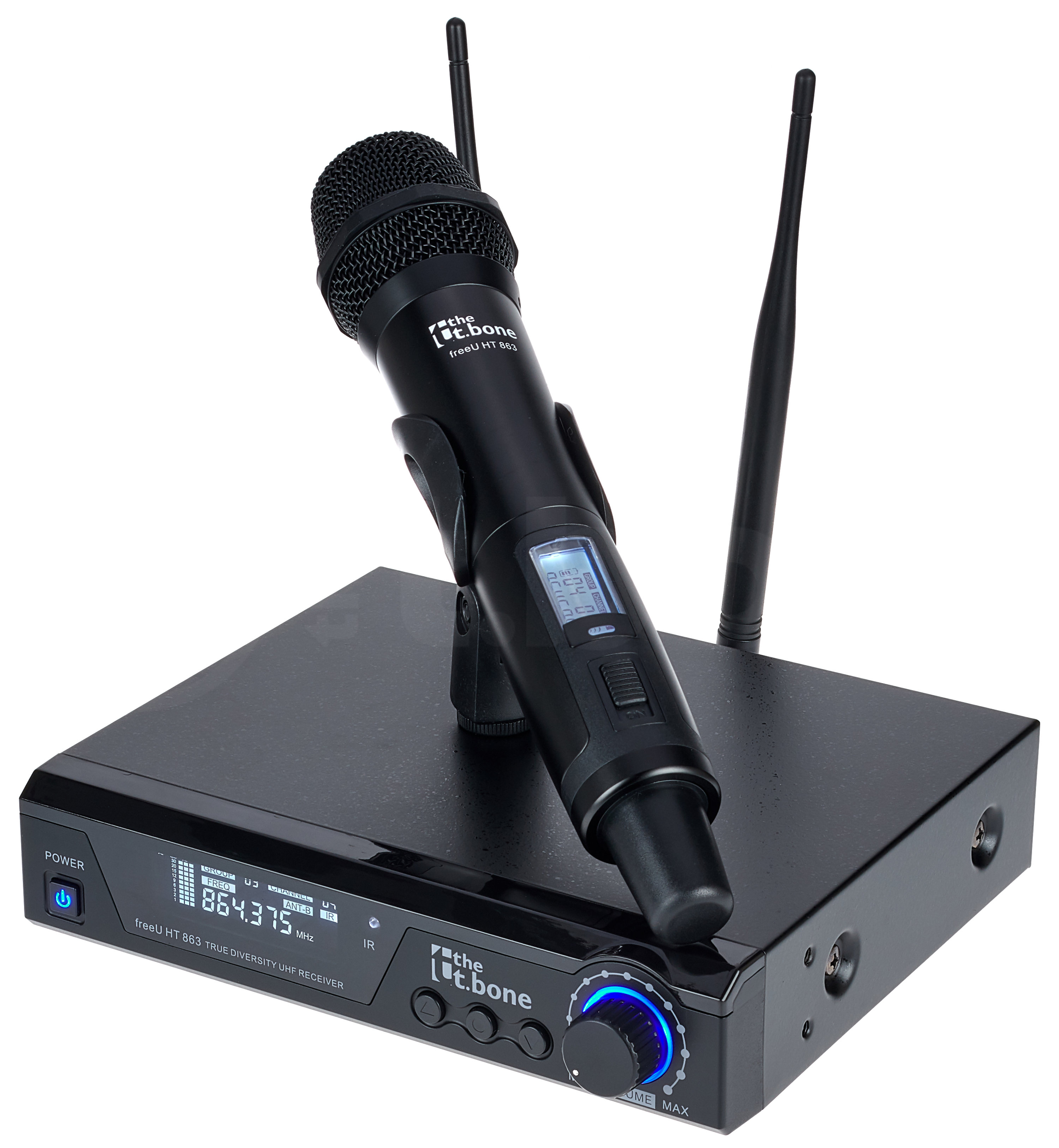

UHF Wireless System
- With a handheld transmitter
- Frequency band: 863 – 865 MHz
- Dynamic capsule
- Directional characteristic: Supercardioid
- Frequency range: 50 – 16,000 Hz
- 4 Pre-programmed frequency groups with 4 available channels each
- Auto squelch
- Frequency scan in the receiver
- Adjustable AF output
- Transmission power: 10 mW
- Infrared transfer of the settings from the receiver to the transmitter
- Pilot tone
- Increments of 125 kHz
- Modulation type: F3E

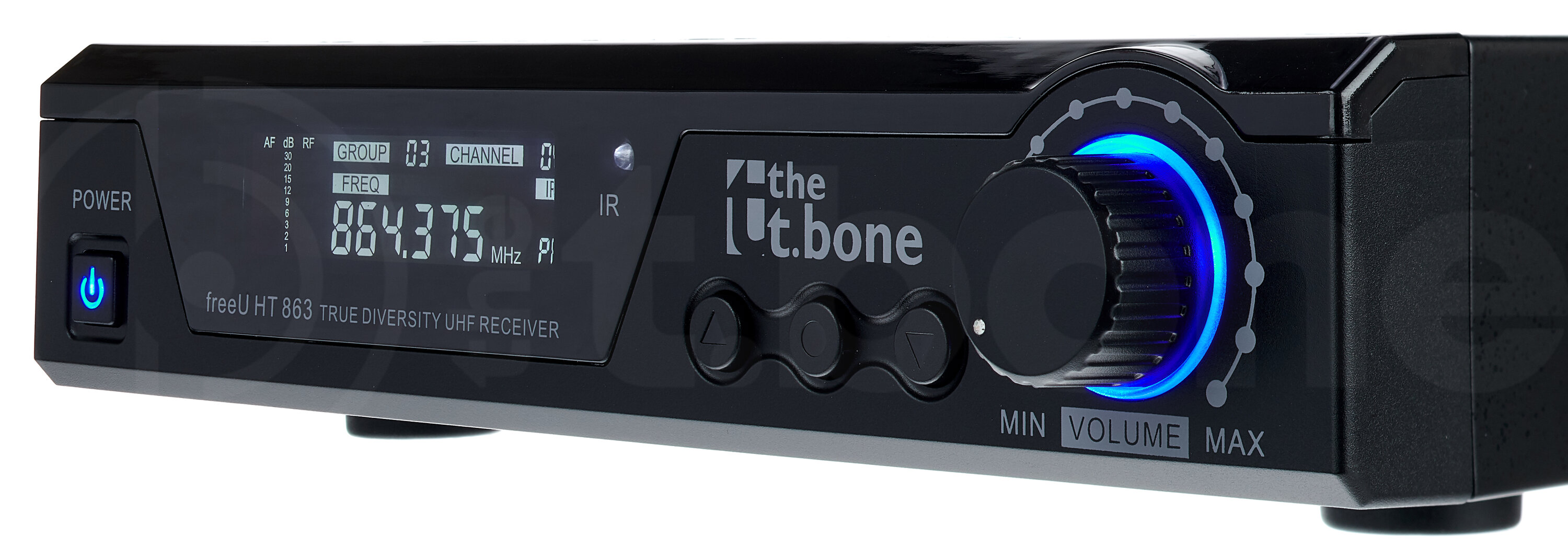

- LCD display

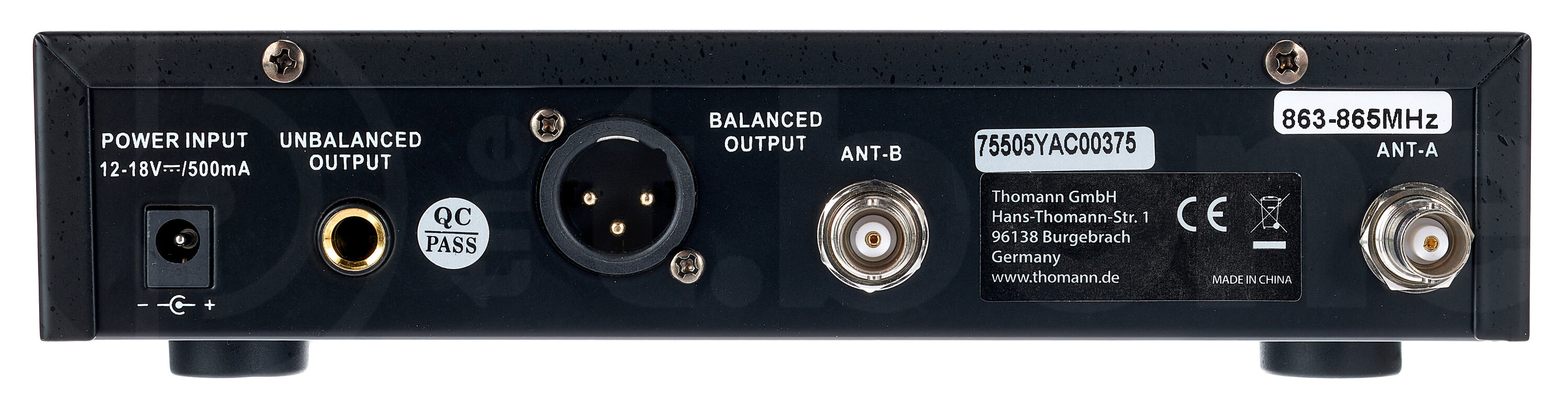

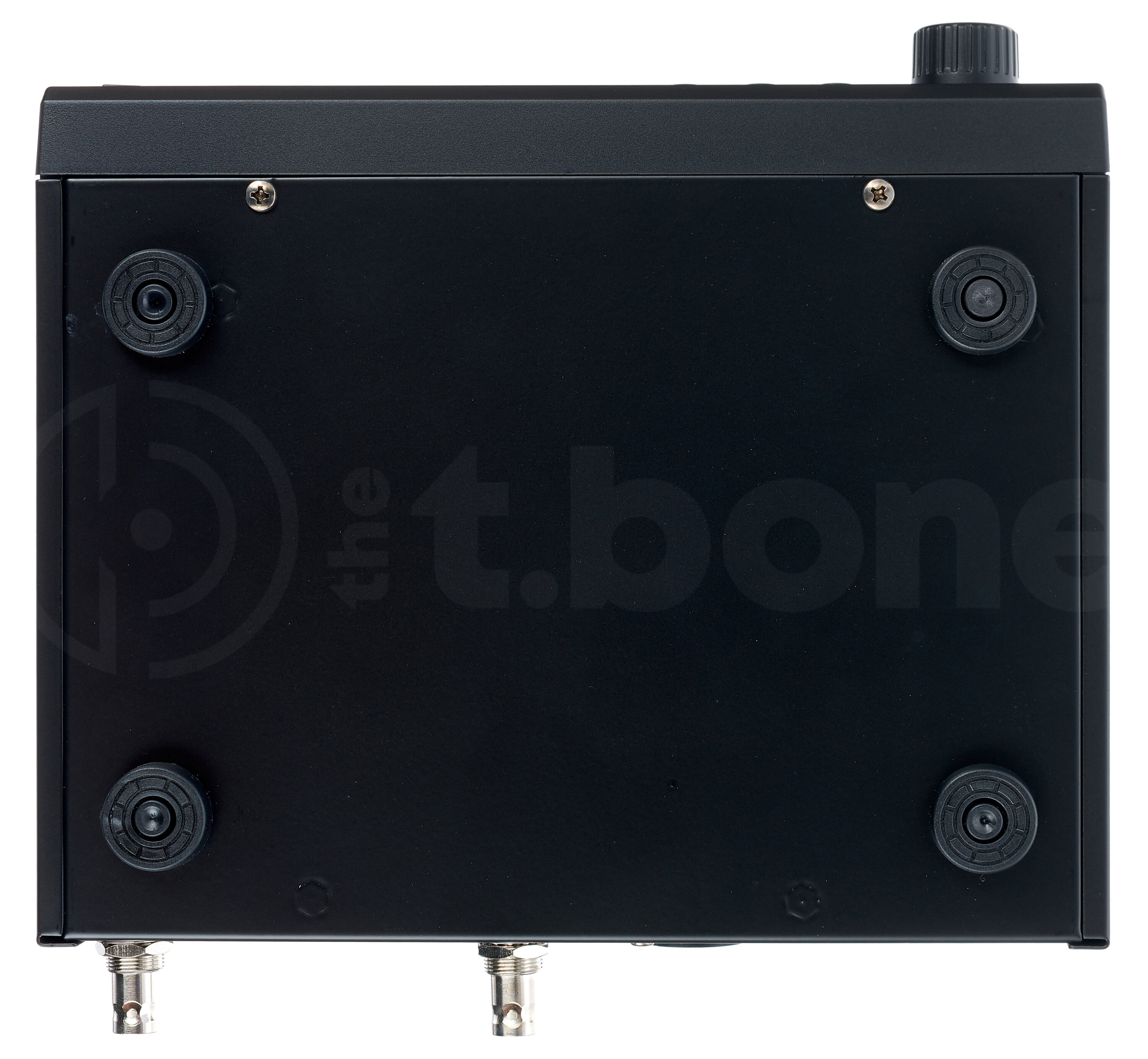

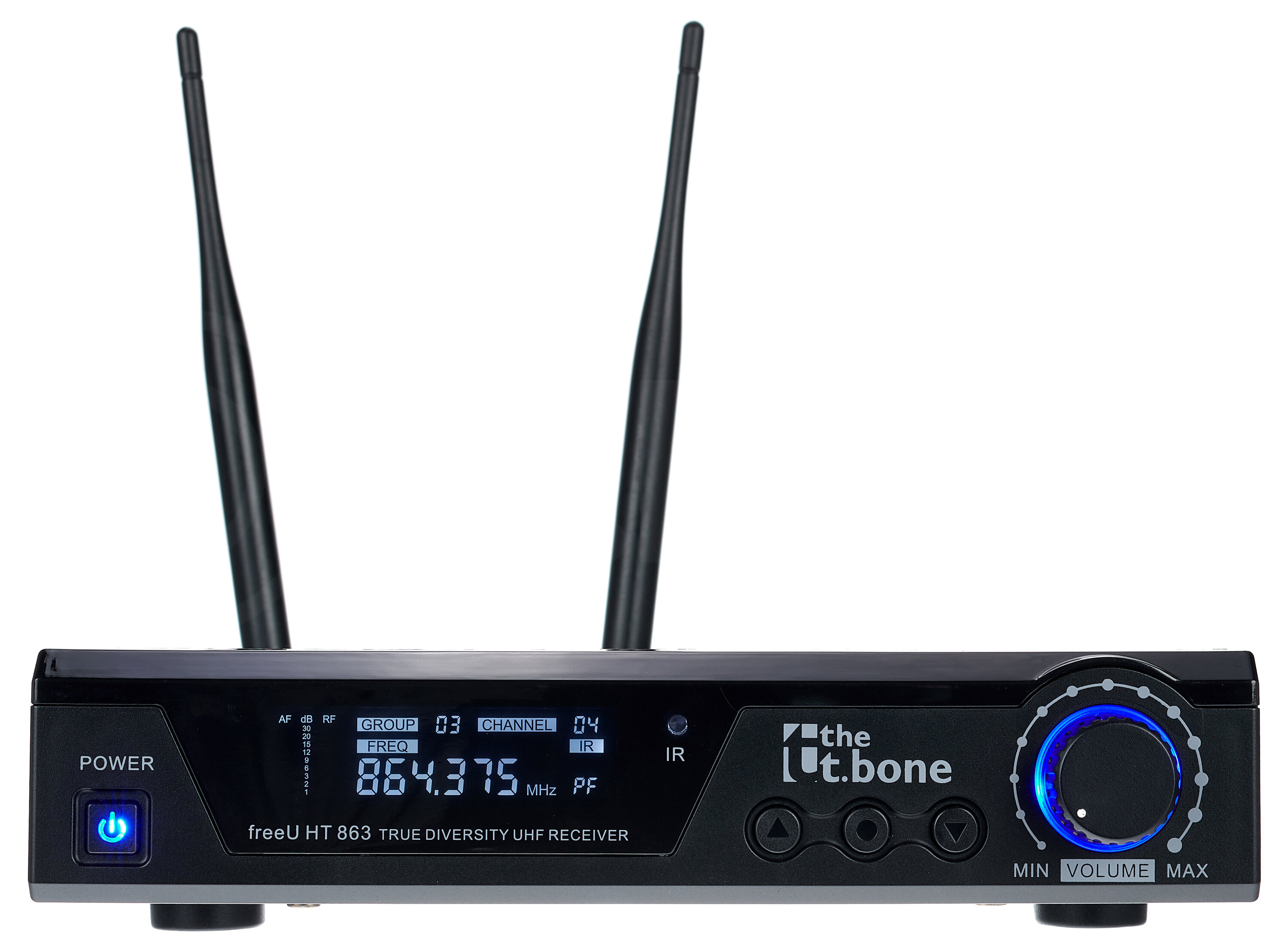

- Housing: 9.5″, 1 U with 2 BNC connectors for antennas

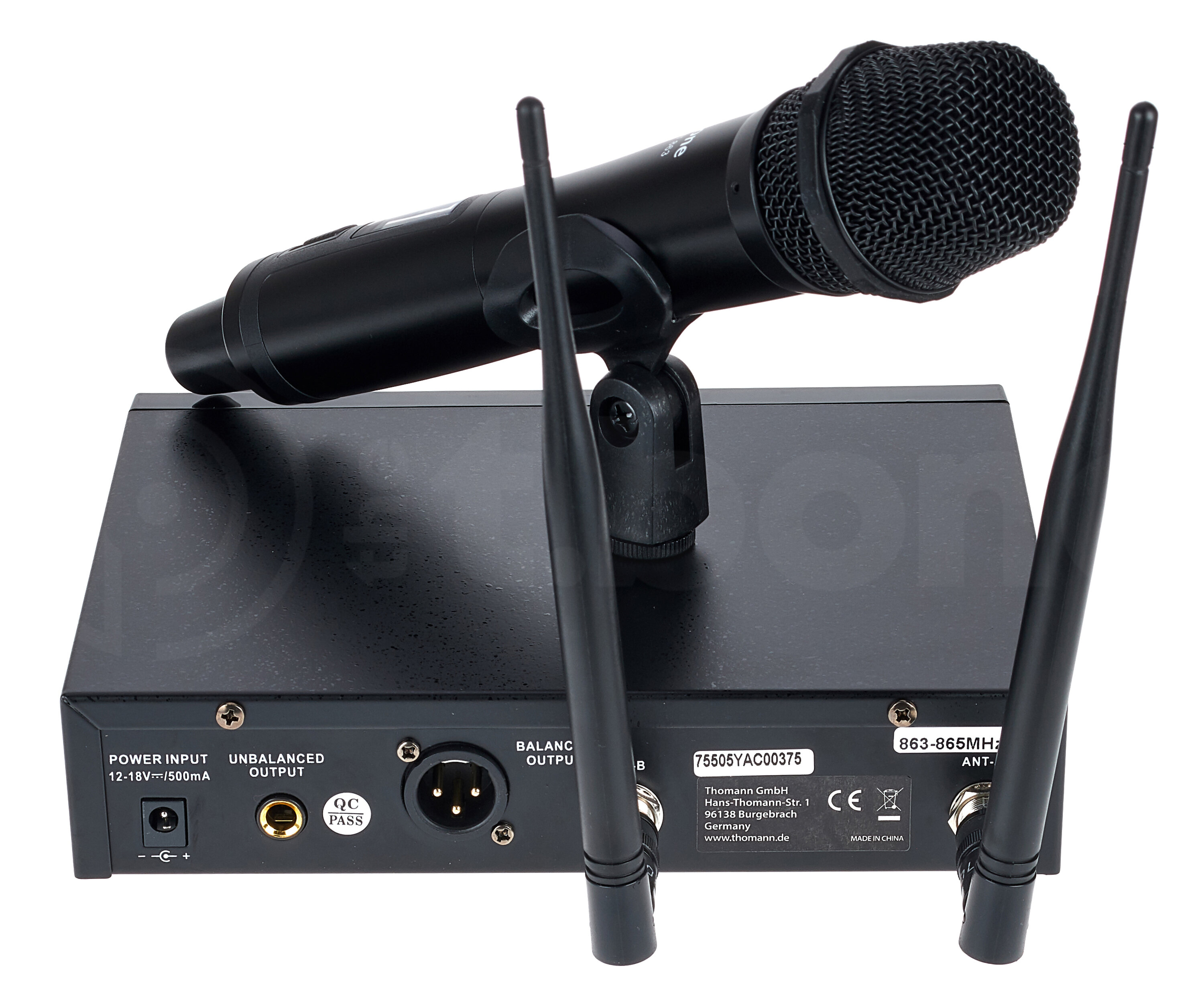

- XLR- and jack output

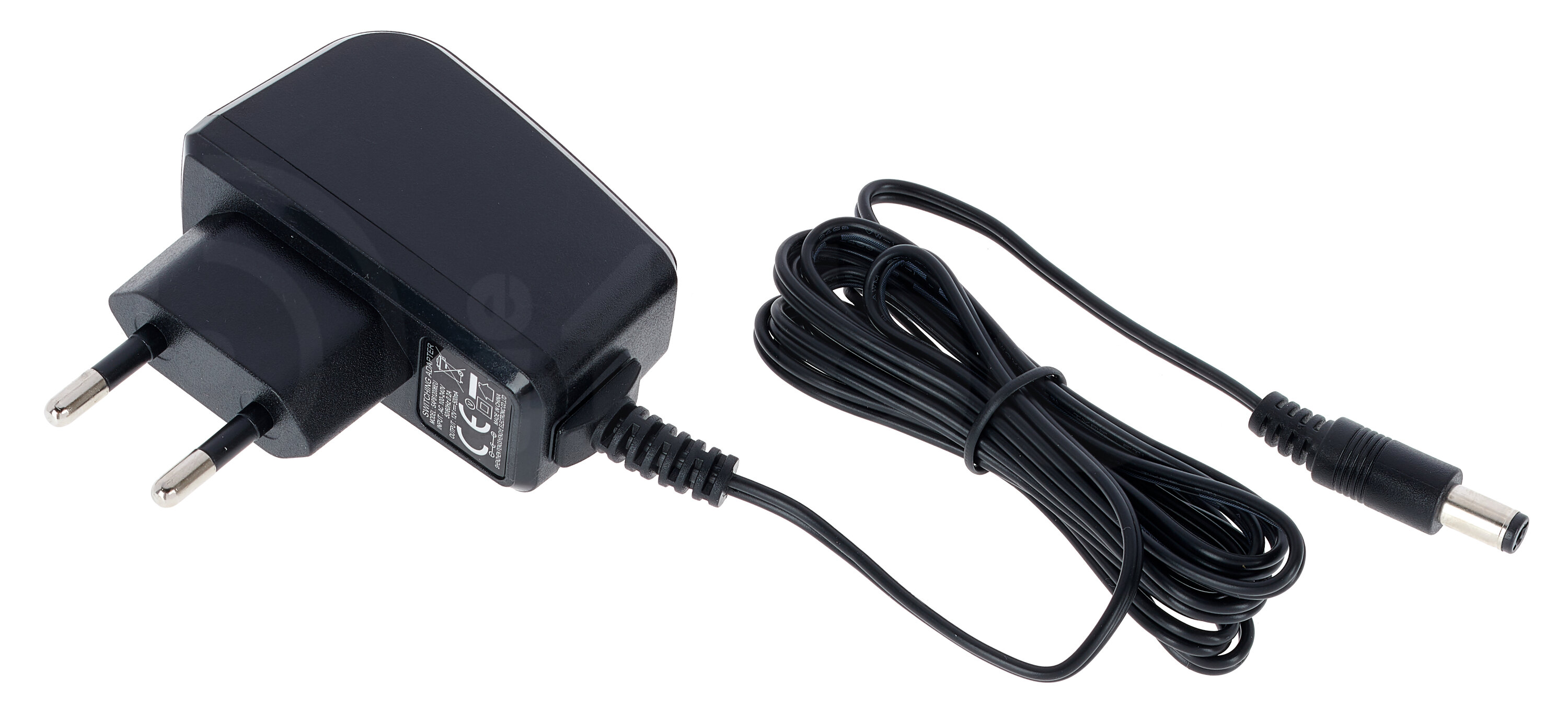

- Operates with a 12 V, 0.5 A DC power supply (positive polarity (+) inside)

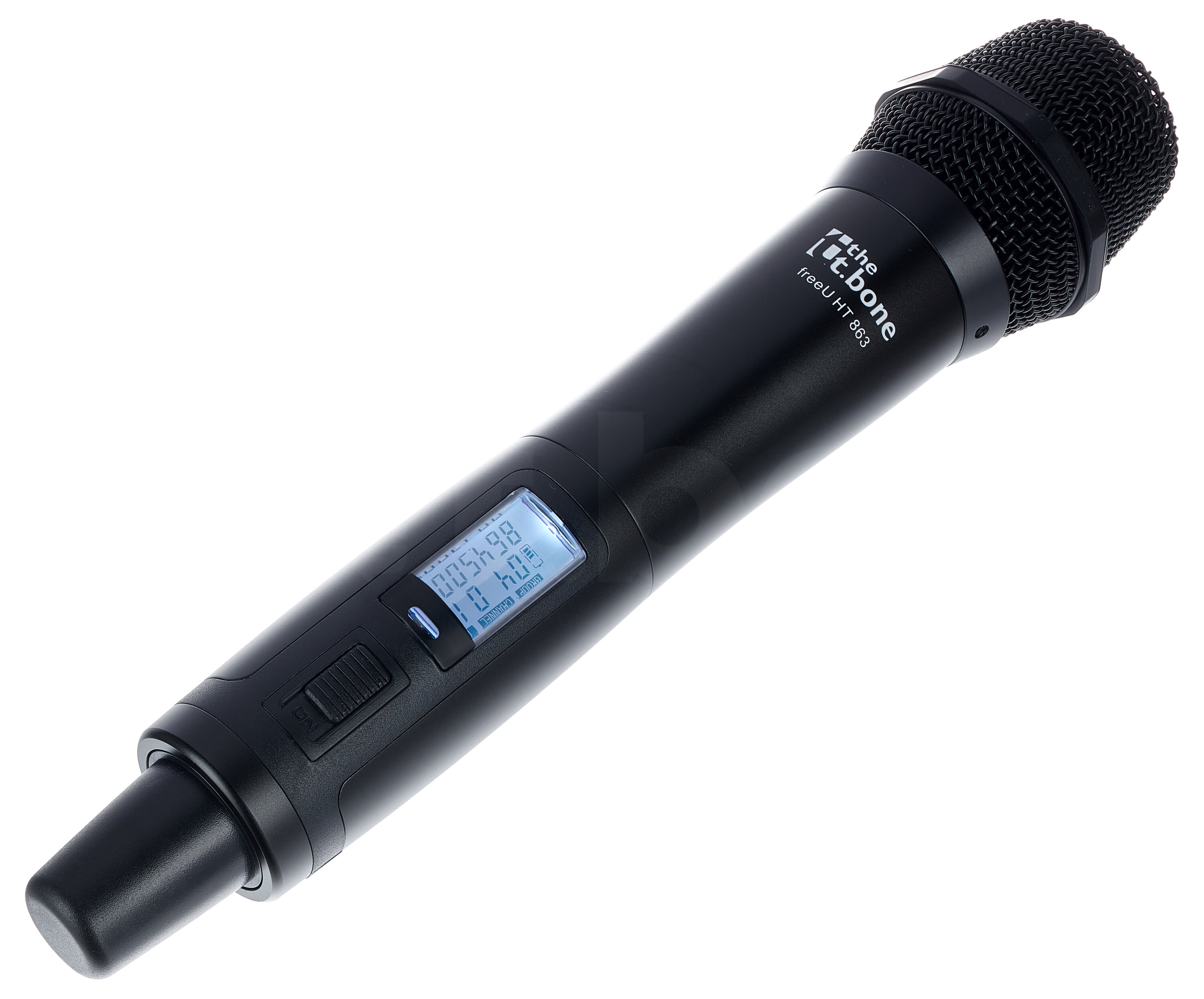

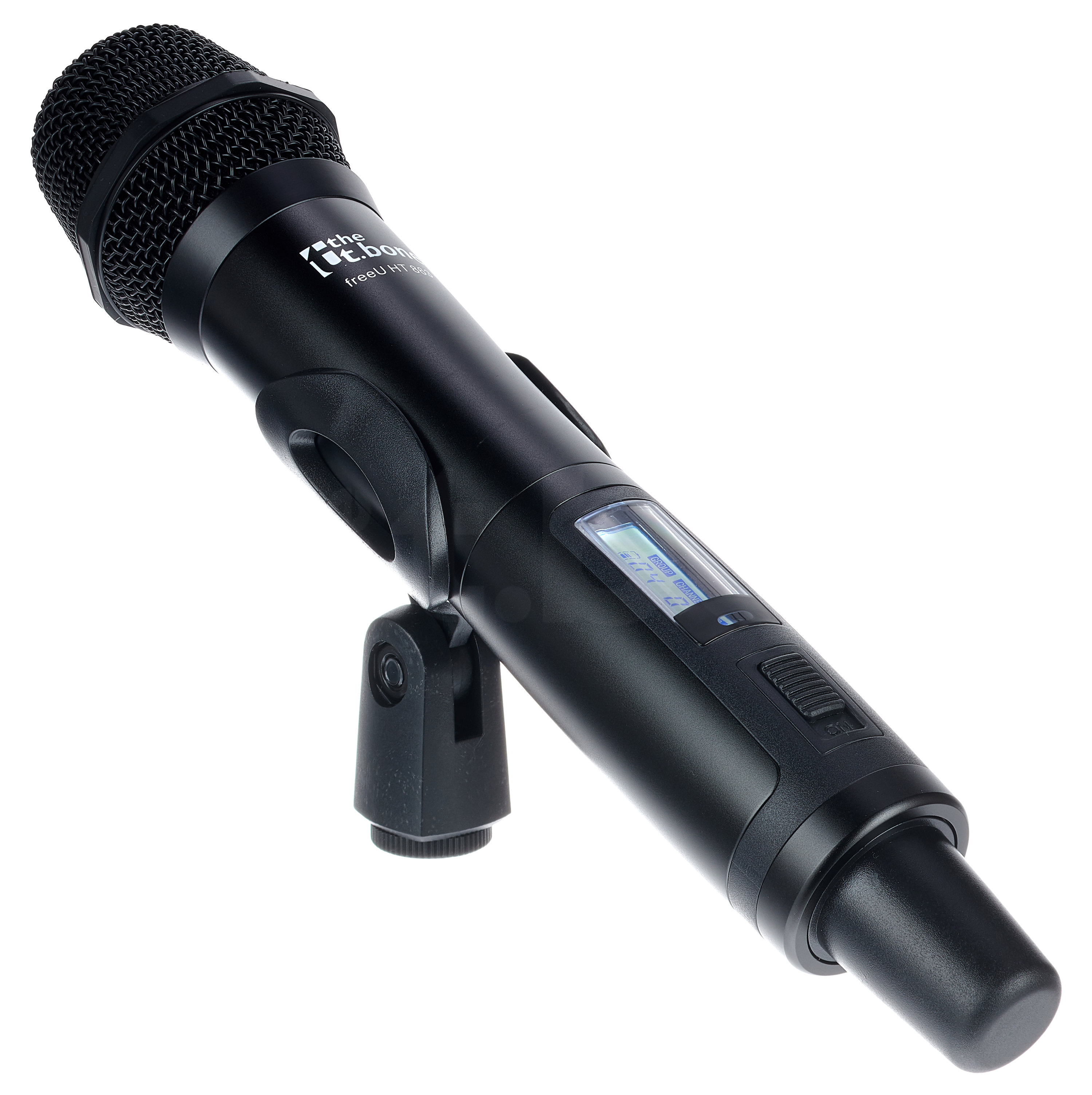

- Dynamic handheld transmitter with metal housing

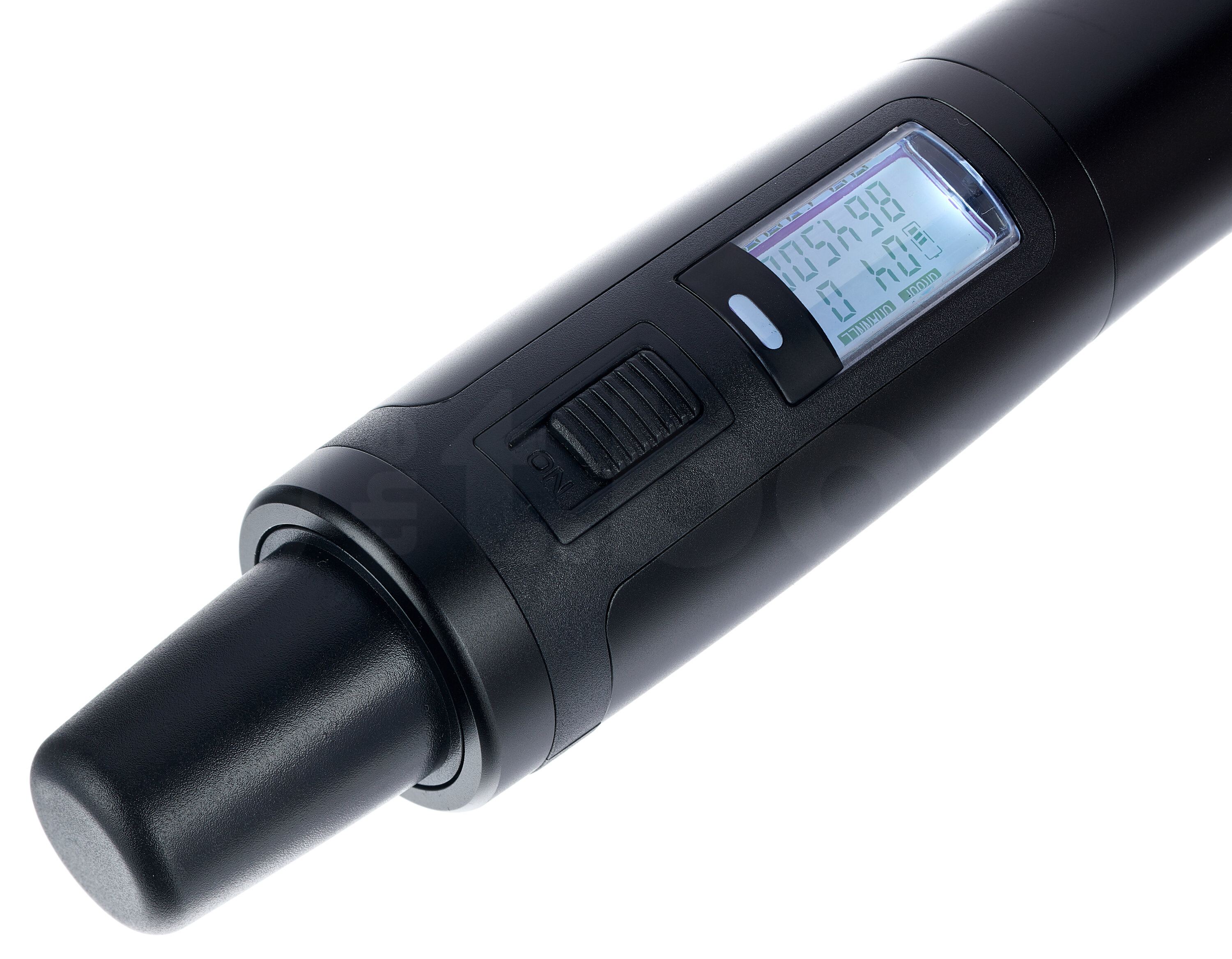

- LCD display
- Operates with 2 AA batteries or rechargeable batteries

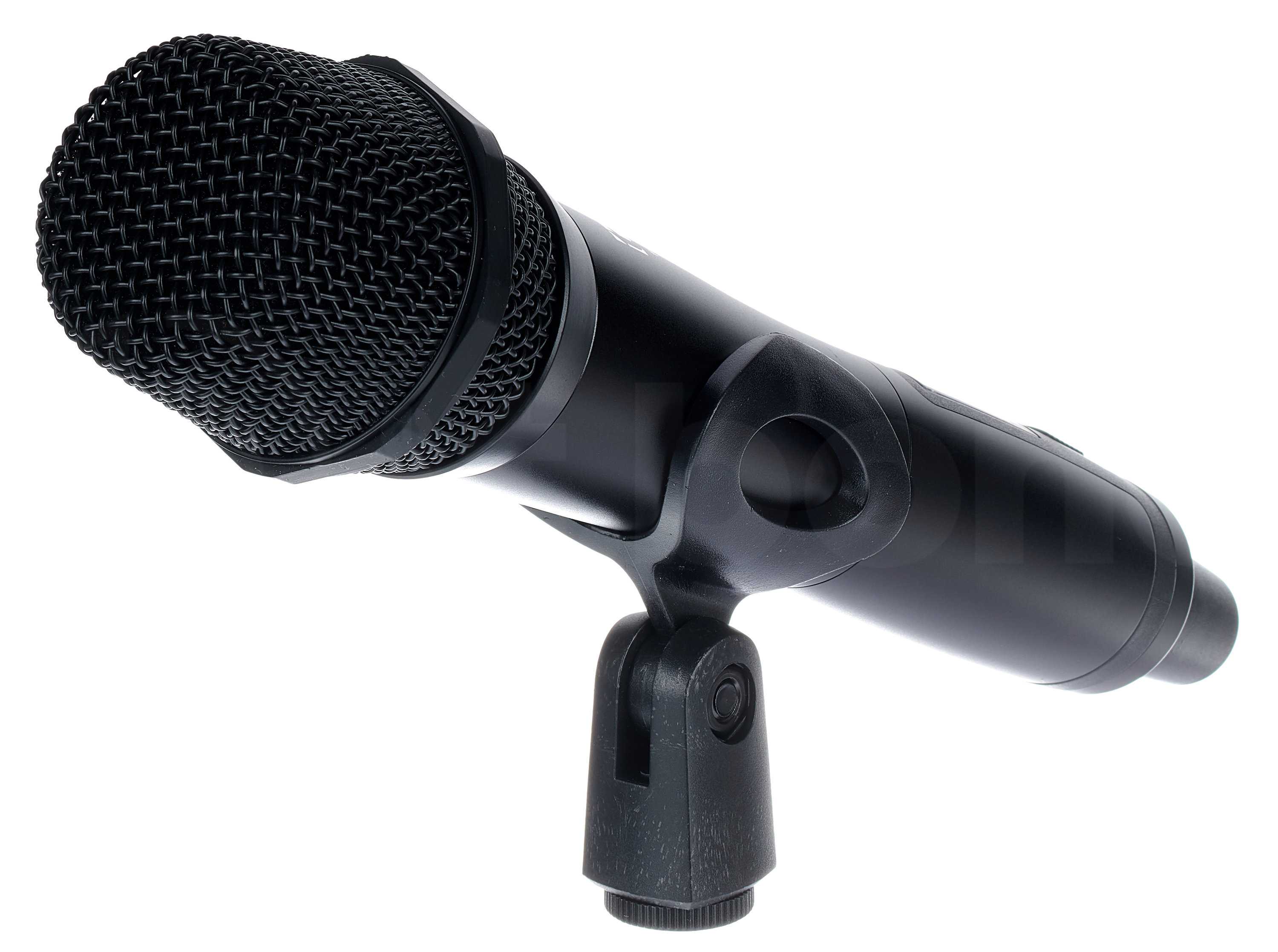

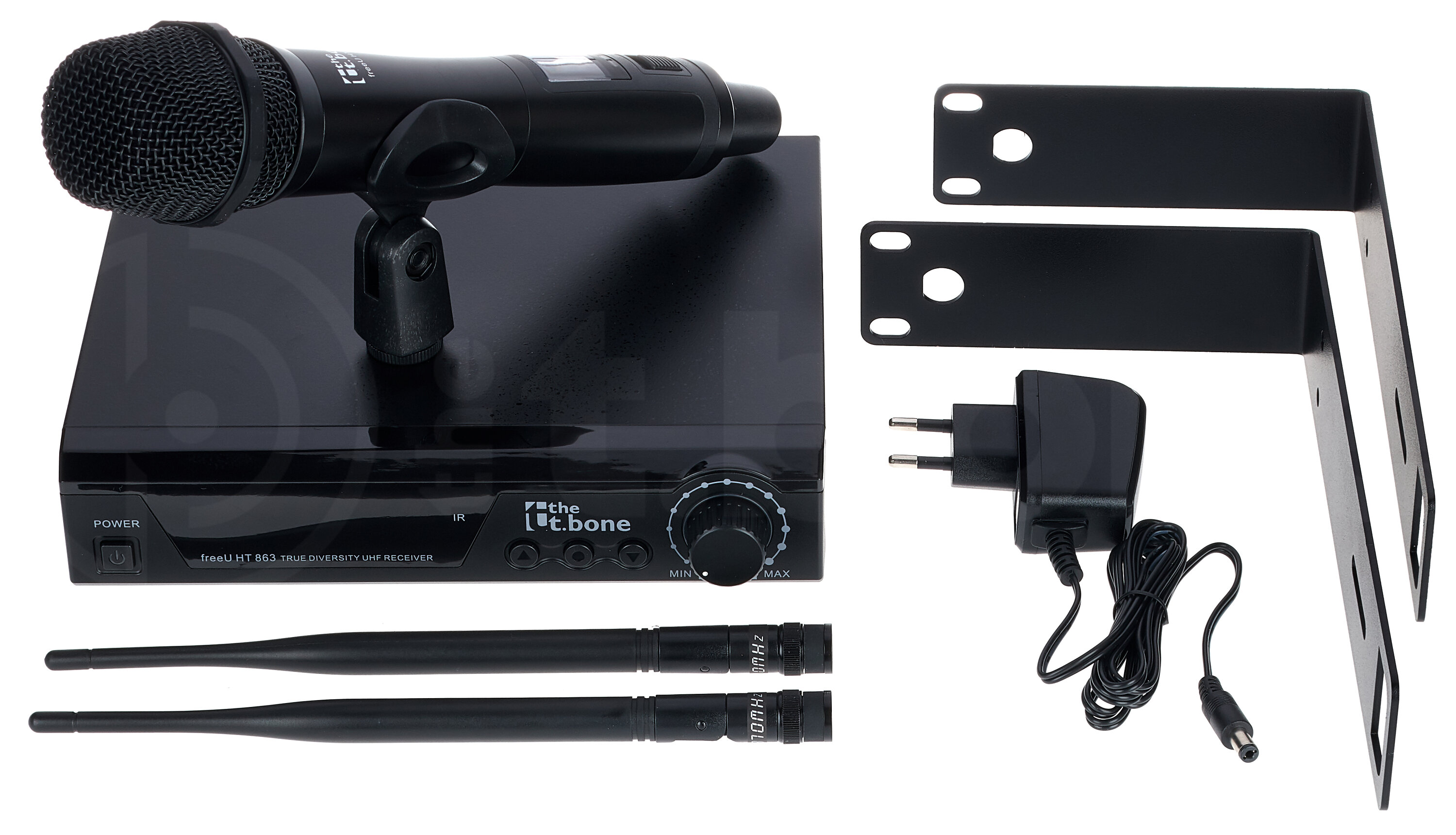

- Includes a microphone holder, antennas, EU power supply and rack kit for the installation of an 1 U receiver
- Optional antenna converters available under Article Nr #177448# (not included)
- With a handheld transmitter
- Frequency band: 863 – 865 MHz
- Dynamic capsule
- Directional characteristic: Supercardioid
- Frequency range: 50 – 16,000 Hz
- 4 Pre-programmed frequency groups with 4 available channels each
- Auto squelch
- Frequency scan in the receiver
- Adjustable AF output
- Transmission power: 10 mW
- Infrared transfer of the settings from the receiver to the transmitter
- Pilot tone
- Increments of 125 kHz
- Modulation type: F3E
- LCD display
- Housing: 9.5″, 1 U with 2 BNC connectors for antennas
- XLR- and jack output
- Operates with a 12 V, 0.5 A DC power supply (positive polarity (+) inside)
- Dynamic handheld transmitter with metal housing
- LCD display
- Operates with 2 AA batteries or rechargeable batteries
- Includes a microphone holder, antennas, EU power supply and rack kit for the installation of an 1 U receiver
- Optional antenna converters available under Article Nr #177448# (not included)
- With a handheld transmitter
- Frequency band: 863 – 865 MHz
- Dynamic capsule
- Directional characteristic: Supercardioid
- Frequency range: 50 – 16,000 Hz
- 4 Pre-programmed frequency groups with 4 available channels each
- Auto squelch
- Frequency scan in the receiver
- Adjustable AF output
- Transmission power: 10 mW
- Infrared transfer of the settings from the receiver to the transmitter
- Pilot tone
- Increments of 125 kHz
- Modulation type: F3E
- LCD display
- Housing: 9.5″, 1 U with 2 BNC connectors for antennas
- XLR- and jack output
- Operates with a 12 V, 0.5 A DC power supply (positive polarity (+) inside)
- Dynamic handheld transmitter with metal housing
- LCD display
- Operates with 2 AA batteries or rechargeable batteries
- Includes a microphone holder, antennas, EU power supply and rack kit for the installation of an 1 U receiver
- Optional antenna converters available under Article Nr #177448# (not included)
For singers and speakers

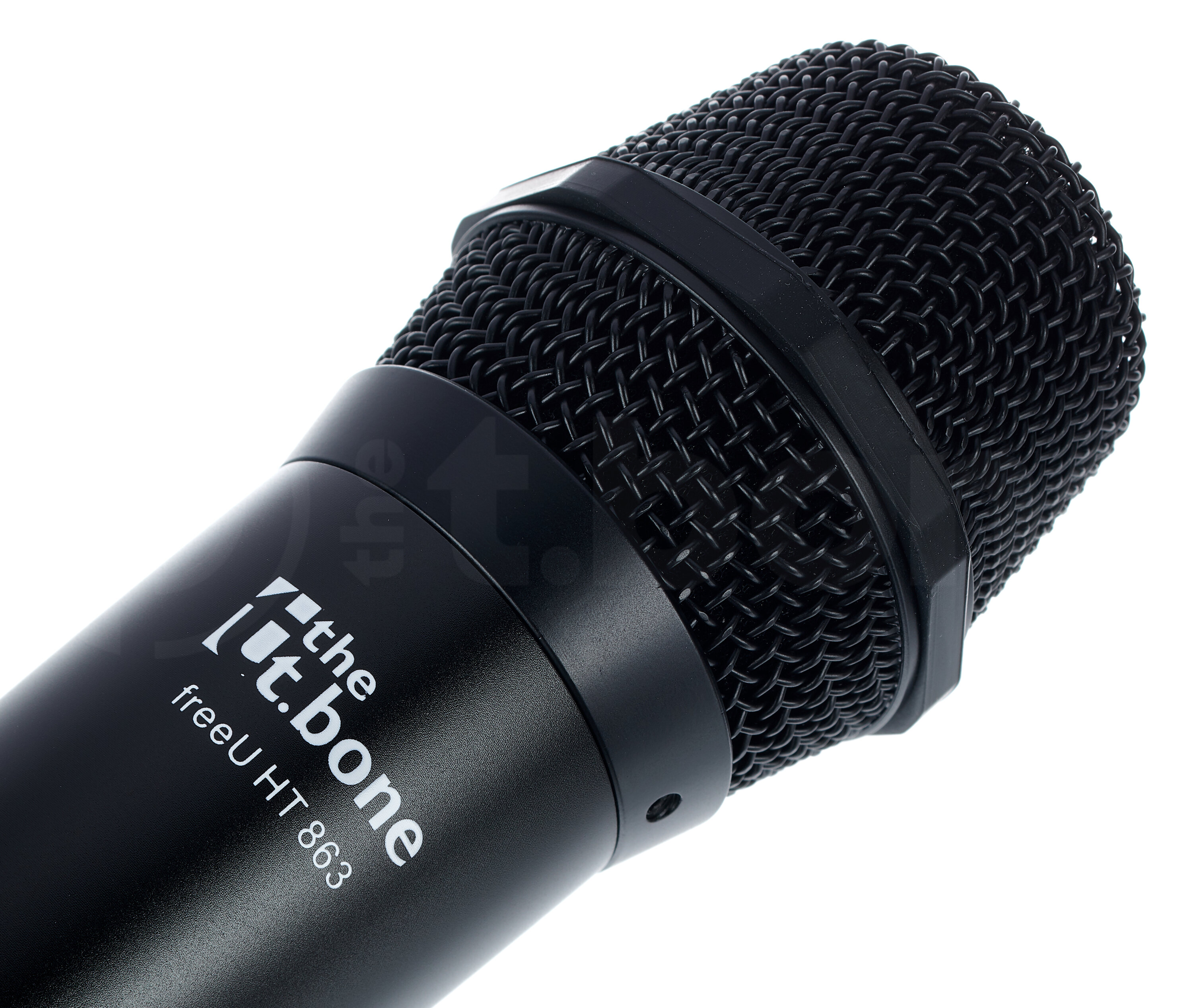

The dynamic mic included in this set has a supercardioid polar pattern that focuses strongly on the sound sources directly in front of it. Its frequency range reaches from 50 Hz to 16 kHz, making the microphone well-suited for singers and speakers alike. The transmitter uses the 863 to 865 MHz frequency band with a transmission power of 10 mW. This means that the system can be used free of charge and without registration across Europe.
From pub to stage
With a maximum range of 50 meters, the t.bone freeU HT 863 makes a great affordable wireless system for performing in bars, pubs and on smaller stages. Since the body is made of metal, the handheld mic is sturdy enough for frequent use and transportation. And thanks to the backlit LCD display, setting up the system is a breeze – even in low-light situations. Presenters will find this wireless microphone system useful at trade shows, corporate events, book presentations, and anywhere else a reliable wireless mic is required. You can even use it in the rehearsal room to avoid cluttering the room with audio cables.
Plenty of flexibility

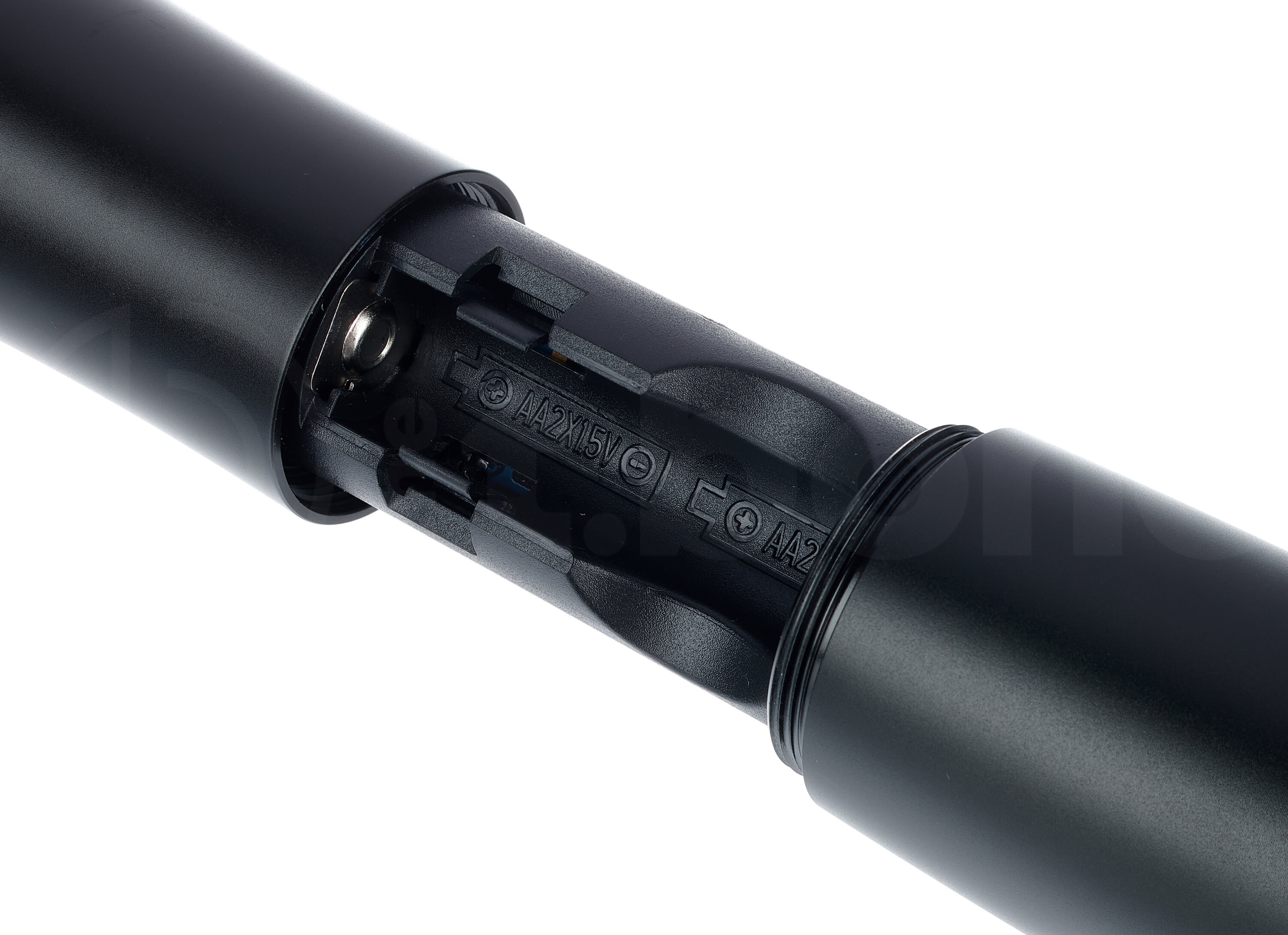

With four pre-programmed frequency groups with four channels each, the freeU HT 863 system offers plenty of flexibility for finding interference-free frequencies. An automatic frequency scan function is just one of the many professional features of this affordable wireless system. The automatic squelch function prevents loud noises from occurring under unfavourable conditions. The settings of the receiver can be sent to the handheld transmitter via infrared. And the system even uses a pilot tone to ensure a reliable wireless connection. By the way, the microphone works for up to 10 hours with two AA batteries.
